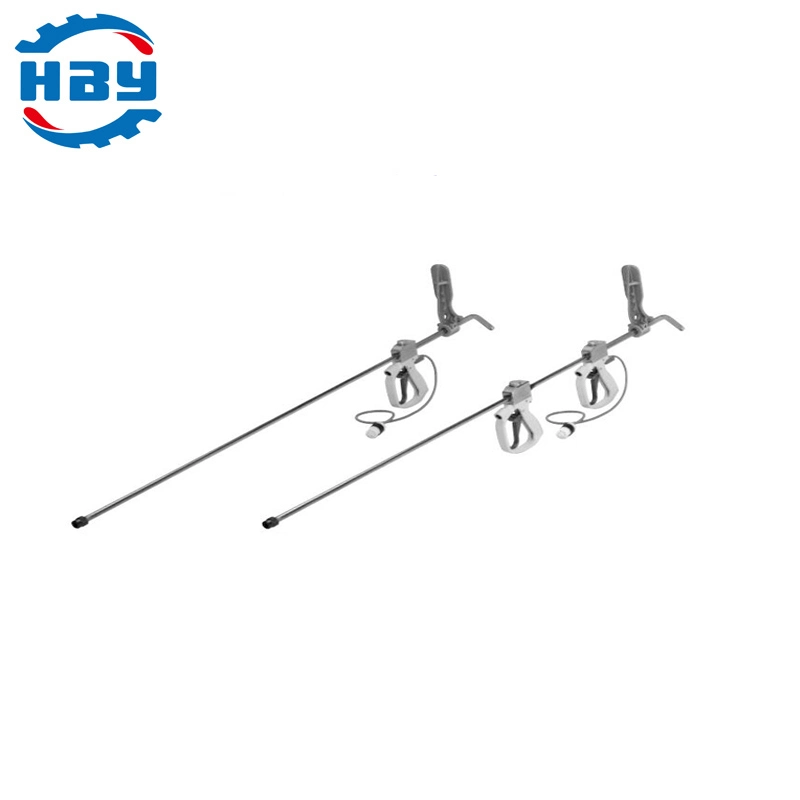

Hand Operated Pressure Control Gun for UHP Water Cleaning Machine
20,000 psi hand-operated dump style control guns allow the operator to have complete control of the pressure at all times. Designed with safety, comfort, and simplicity in mind, they are used for a variety of surface cleaning applications and are available in four standard configurations.
. 30 second field replaceable cartridge design for minima downtime
. 48" distance from primary trigger to end of barrel to ensure maximum operator safety**
. Lightweight
. DCP models feature fully adjustable body pad for maxi-mum operator comfort in any position (shoulder, hip,chest, etc.), while an ergonomically designed shoulder stock is included with DCPx models
. Adjustable secondary grip included with single trigger models
. Dual trigger models require both triggers to be engaged in order to build system pressure for maximum operator safety
. All pressure-bearing components are stainless steel
. Equipped with holder for single nozzle. Ideal for use with the Jetstream Orbi-Jet self-rotating nozzles
Charts:
How to choose a right HP Gun:
1. Confirm the Max. working pressure.
2. Confirm the Max. water flow.
3. Confirm the gun's type.
20,000 psi hand-operated dump style control guns allow the operator to have complete control of the pressure at all times. Designed with safety, comfort, and simplicity in mind, they are used for a variety of surface cleaning applications and are available in four standard configurations.
. 30 second field replaceable cartridge design for minima downtime
. 48" distance from primary trigger to end of barrel to ensure maximum operator safety**
. Lightweight
. DCP models feature fully adjustable body pad for maxi-mum operator comfort in any position (shoulder, hip,chest, etc.), while an ergonomically designed shoulder stock is included with DCPx models
. Adjustable secondary grip included with single trigger models
. Dual trigger models require both triggers to be engaged in order to build system pressure for maximum operator safety
. All pressure-bearing components are stainless steel
. Equipped with holder for single nozzle. Ideal for use with the Jetstream Orbi-Jet self-rotating nozzles
Charts:
| Model | Trigger | Rest Type | Connection | Length | Weight | Max. Working Pressure |
| DCP-20 | Single | Body | Male | 180cm | 5.5kg | 40000psi/2800bar |
| DCPS-20 | Single | Shoulder | Male | 167cm | 5.5kg | 40000psi/2800bar |
| DCP-20D | Dual | Body | Male | 190cm | 5.5kg | 40000psi/2800bar |
| DCPX-20D | Dual | Shoulder | Male | 177cm | 5.5kg | 40000psi/2800bar |
| DCPSI-20 | Single | Body | Male | 180cm | 5.5kg | 40000psi/2800bar |
| DCPXSI-20 | Single | Shoulder | Male | 177cm | 5.5kg | 40000psi/2800bar |
How to choose a right HP Gun:
1. Confirm the Max. working pressure.
2. Confirm the Max. water flow.
3. Confirm the gun's type.
