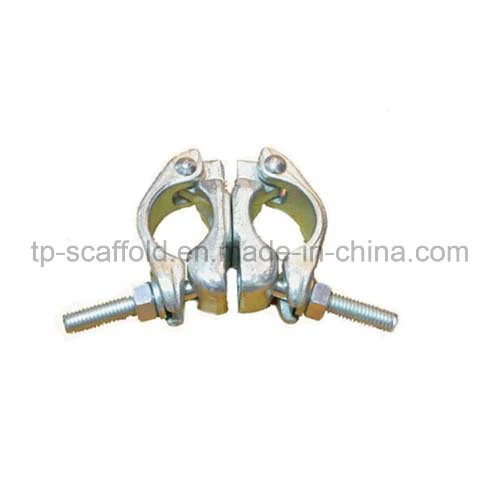

Drop forged scaffolding swivel coupler British type
1. Drop forged scaffolding swivel coupler British type is made to connect 48.3 × 48.3mm tubes at any degrees. It is widely used in construction projects with double couplers.

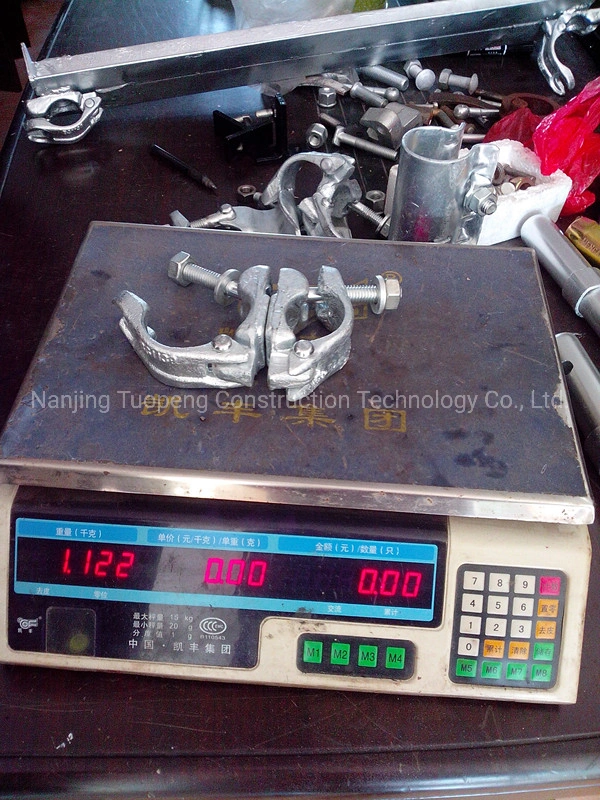

2. Unit weight: 1.13kg
3. Surface finish: electro galvanized, or hot dip galvanized
4. Meeting EN74 and BS1139 Standard. Please check the following EN74 Certificate.
5. Packing: 25pcs in one bag, 50 bags are packed on one wood or steel pallet
6. Rich experience in producing all types of scaffolding couplers, pressed type and drop forged type. We have our own forging line.
7. Fast delivery
8. Customized marks can be made as requested
If you did not find the right coupler from the following list, please email us
| No. | Item | Weight (kg) |
| 1 | Drop forged fixed coupler British type: 48.3 x 48.3 mm | 0.97 |
| 2 | Drop forged swivel coupler British type: 48.3 x 48.3 mm | 1.13 |
| 3 | Drop forged putlog coupler | 0.65 |
| 4 | Pressed sleeve, end to end connector | 1.02 |
| 5 | Drop forged fixed girder coupler | 1.5 |
| 6 | Drop forged swivel girder coupler | 1.6 |
| 7 | Ladder coupler | 0.72 |
| 8 | Drop forged inner joint pin | 1.1 |
| 9 | Board retaining coupler | 0.63 |
| 10 | Pressed right angle coupler British type | 0.85 |
| 11 | Pressed swivel coupler British type | 1.02 |
| 12 | Pressed putlog coupler | 0.63 |
| 13 | Pressed inner joint pin | 0.68 |
| 14 | Drop forged fixed coupler American type: 48.3 x 48.3 mm | 1.65 |
| 15 | Drop forged swivel coupler American type: 48.3 x 48.3 mm | 1.75 |
| 16 | Drop forged half coupler British type | 0.65 |
| 17 | Drop forged half coupler American type | 0.92 |
| 18 | Drop forged fixed coupler German type: 48.3 x 48.3 mm | 1.3 |
| 19 | Drop forged swivel coupler German type: 48.3 x 48.3 mm | 1.4 |
EN74 Certificate for Scaffolding swivel coupler
EN 74-1:2005 , Class A
