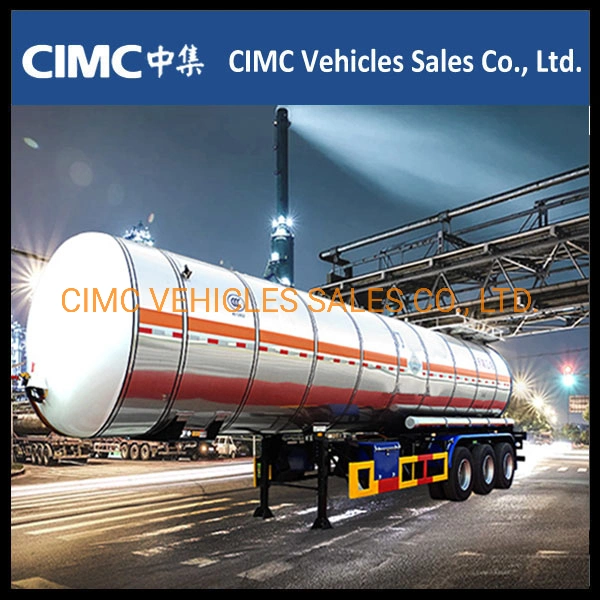

LNG Semi Trailer
CIMC has the ability to design and manufacture all kinds of refrigerated liquefied gas (LNG) tankers with high vacuum multi-layer insulation. The substance can be LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc.
Technical Specification
Design codes: GB/T 150 Pressure Vessels, NB/T47058-2017 Road Tanker for Refrigerated Liquefied Gas, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material: S30408/SA-240 304(inner tank)/Q345R/SA-516(outer tank)
Chinese GB standard | |||
Total Weight | 40000kg | ||
Payload | 23800kg | ||
Net Weight | 16200kg | ||
Overall Dimension(L*W*H) | 13000*2500*3900mm | ||
Medium | LNG | ||
Capacity | 52.6m3 | ||
Inner tank | Outer tank | ||
Design Pressure | 0.65MPa | -0.1 | |
Design Temperature | -196°C | 50°C | |
Working Temperature | -162°C | Normal temperature | |
Corrosion Allowance | 0 | 0 | |
Main Material | X5CrNiN19-9/S30408/304 | Q345R | |
Capacity | 52.6m3/47.34m3 | 7.24m3 (interlayer) | |
Insulation Type | Hign-vacuum Multi-layer Heat Insulation | ||
Contact
Mr. Allen
Mobile : +86 151 5082 2016
LPG Semi Trailer
CIMC has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. HONGTU has cooperated with the international reputed suppliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirement.
Technical specification
Design Code: ASME BPVC VIII-1/VIII-2, EN 12493, GB/T 19905, JB 4732
Vessel Capacity: 30m3~70m3
Vessel Material: SA-516, SA-517, SA-612, P460, Q420R, Q370R etc.
Tank Type: Cylinder tank, Eccentric cone tank, etc.
Vehicle Type:
- ASME code tank + international brands of valves and accessories
- Chinese standard tank + Chinese brands of valves and accessories
- Chinese standard tank + international brands of valves and accessories
Chinese GB Standard | |||
Total Weight | 41915kg | ||
Payload | 26915kg | ||
Net Weight | 15000kg | ||
Overall Dimension(L*W*H) | 13150*2500*4100mm | ||
Medium | LPG | ||
Capacity | 58.1m3 | ||
InsideDiameter | 2470mm | ||
Total Length of Tank | 12.966m | ||
Design Pressure | 1.72/-0.1MPa | ||
Tank Weight | 10600kg | ||
MAWP | 1.72MPa | ||
Design Temperature | -20/50ºC | ||
Medium Density | 0.545t/m3 | ||
Joint Efficiency | 1.0 | ||
Corrosion Allowance | 1mm | ||
Shell Material | Q370R Normalized | ||
Head Material | Q370R Normalized | ||
Shell Thickness | 12mm | ||
Head Thickness | 8mm | ||
Leakage Test Pressure | 1.72MPa | ||
Hydrostatic Test Pressure | 2.24MPa | ||
Company information
CIMC VEHICLES SALES CO., LTD.
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.
Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!
