DIN En853 R2 2sn High Pressure Hose/Hydraulic Hose/Rubber Hose
STANDARD: DIN EN 853
Tube: Oil resistant synthetic rubber
Reinforceent: Two high tensile steel wire layers 2 w
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100c
Double wire braid. No skiving required. Recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications. Meets or exceeds all SAE 100R2 AT hydraulic hose specifications.
Datasheet of DIN En853 R2 2sn High Pressure Hose/Hydraulic Hose/Rubber Hose

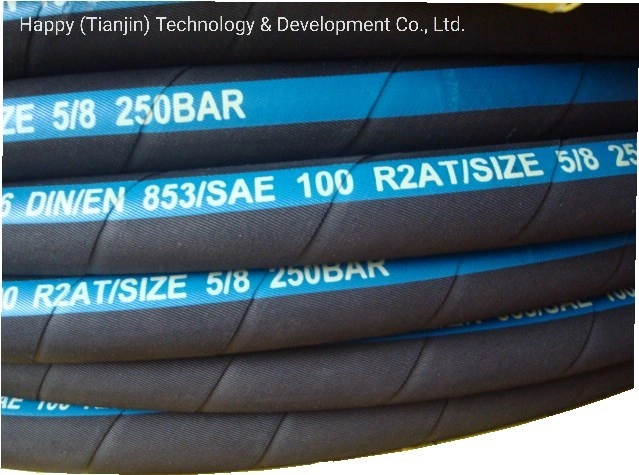

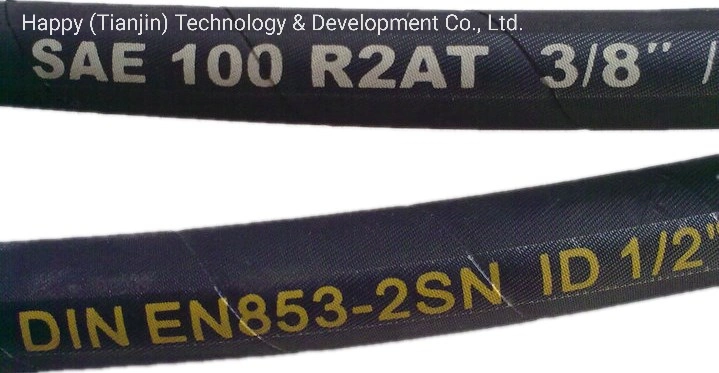

Pictures of DIN En853 R2 2sn High Pressure Hose/Hydraulic Hose/Rubber Hose
STANDARD: DIN EN 853
Tube: Oil resistant synthetic rubber
Reinforceent: Two high tensile steel wire layers 2 w
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100c
Double wire braid. No skiving required. Recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications. Meets or exceeds all SAE 100R2 AT hydraulic hose specifications.
Datasheet of DIN En853 R2 2sn High Pressure Hose/Hydraulic Hose/Rubber Hose
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 16 | 23720 | 90 | 0.31 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 100 | 0.33 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 115 | 0.39 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 130 | 0.50 |
| 12 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 180 | 0.59 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 200 | 0.71 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 240 | 0.86 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 300 | 1.28 |
| 31 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 420 | 2.02 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 500 | 2.23 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 630 | 2.85 |
