Excellent cooling lower electric consumption Industrial Water Chiller Cooling Water Machine Process Water Chiller
MGREENBELT as the Top industrial chiller manufacturer and supplier, have gradually produced Water cooled screw chiller, Air cooled screw chiller, Plastic chiller, Glycol chiller and Industrial chiller which are widely applied to chemical industry, plastic & rubber machinery, large steel and indsutrial production factory ,construction, concrete plant, textile, general machinery, PCB industry, electroplating, equipments of laboratory, food, pharmacy, etc .

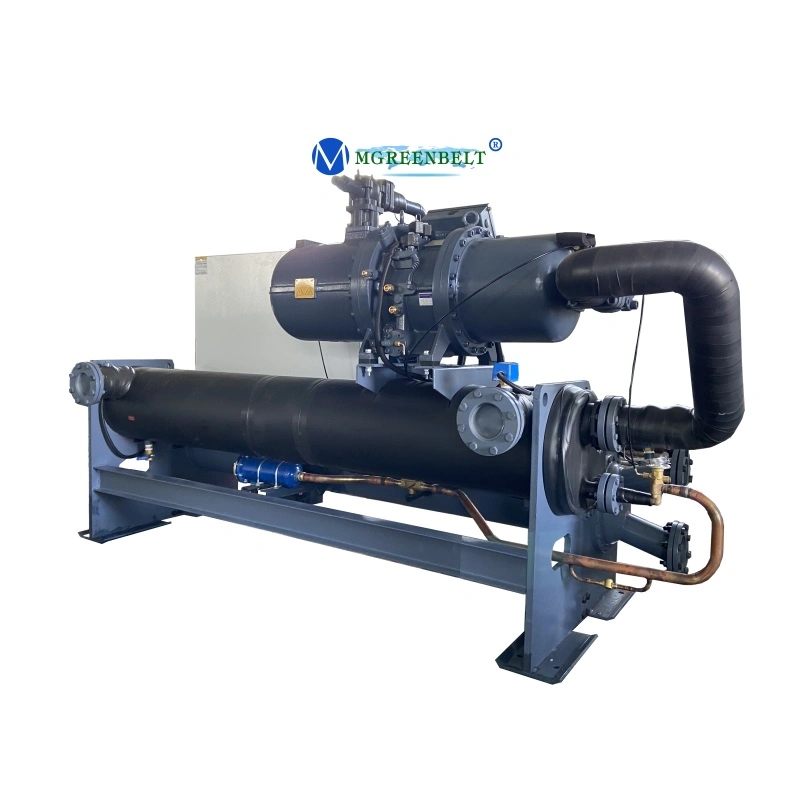

Factory Price CE Standard Plastic Industry extruder injection machine 100 Tons Water Cooled Industrial Chiller Features
1- Well Known Brand Compressor
a. Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
b. Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
c. Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
2- Control System
a. Microcomputer and Industrial PLC for options,combined with compressor capacity control system, precisely monitor.
b. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
c. Optional operation language, menu leading, unit running state easy to adjust.
d. Easy Installation, Reliable Running
3- Design features
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Cooling system includes Water Cooled SCrew Chiller, Water Tank, Cooling Tower, Water Pumps
1. Water cooled screw chiller
2. Stainless steel water tank
3. Cooling tower
4. Water pumps
We can provide you the one-stop purchase, all above parts from from us, of course this is not must buy from us, if you already have them, or you can buy them in local, it is also ok.
Energy Saving Water Cooled Chiller
(1). Outlet water temperature : -5deg C~30deg C
(2). Brand screw type compressor: Hanbell, ,Bitzer, RefComp for options
(3). Electric power supply available : 3phase-220v/380v/415v/460v-50Hz/60Hz
| Model | MG-300W | MG-350W | MG-500W | MG-600W | MG-650W | MG-750W | MG-800W | |
| Capty | USRT | 83.9 | 100.1 | 145.3 | 173.7 | 182 | 210.4 | 227.5 |
| Kcal/h | 253700 | 302720 | 439460 | 525460 | 550400 | 636400 | 688000 | |
| KW | 295 | 352 | 511 | 611 | 640 | 740 | 800 | |
| Power | 3PH-380V-50Hz | |||||||
| Refrigerant | Type | R22 | ||||||
| Control | Thermostatic expansion valve | |||||||
| Comperssor | Type | Semi-closed screw type | ||||||
| kw Power | 70 | 78 | 86 | 104 | 106 | 118 | 128 | |
| Start | Y-△ | |||||||
| Capacity | 25-50-75-100(%) or 25-100(%) | |||||||
| Evaporator | Type | High efficiency copper tube shell and tube type | ||||||
| m³/h Flow | 50.6 | 60.3 | 87.6 | 104.7 | 109.7 | 126.9 | 137.1 | |
| Inlet/Outlet | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | |
| Condenser | Type | High efficiency threaded copper tube shell and tube type | ||||||
| m³/h Flow | 68.8 | 81.1 | 112.6 | 134.8 | 140.7 | 161.8 | 175 | |
| Inlet/Outlet | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
| Dimension | L | 3200 | 3500 | 3500 | 3500 | 3800 | 3800 | 3800 |
| W | 800 | 900 | 900 | 900 | 900 | 1200 | 1200 | |
| H | 1500 | 1500 | 1800 | 1800 | 1800 | 1800 | 1800 | |
| Weight | kg | 1400 | 1600 | 1750 | 1750 | 1850 | 2000 | 2000 |
water cooled chiller layout
Water Cooled Chiller Application
MG-WS series Water Chiller are widely used in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.
Package
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with famous brand shipping companies whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
Our Company
Jinan Mgreenbelt and Jinan Mgreenbelt Machinery Co., Ltd owned by one president, which is a water chiller manufacturer and compressed air solution provider, our main product range include industrial water chiller and air compressor equipment.
In order to meet the need of different customer, we specialized the main industrial:
Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc;
Brewery use glycol chiller: outlet temperature can satisfy 0 degC, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc;
Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller
Other industry equipment working cooling.
Location: Shandong, China (Mainland) Verified
Main Products: Industrial Chiller,Water Chiller,Air Compressor,Oil Free Air Compressor,High pressure air compresor
Total Employees: 51 - 100 People
Total Annual Revenue: US$2.5 Million - US$5 Million
Year Established: 2000 Verified
If models above is workable for your project, don't worry, our industrial water chiller range at follows:
1)Chilled outlet water temperature: -35ºC to +35ºC
2)Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)
3)Cooling way: Air cooled or water cooled
4)Compressor type:Screw type,Scroll type
5)Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ
6)Refrigerant available R22/R407c/R410a/R134a
FAQ:
1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,e-checking, Credit card,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
