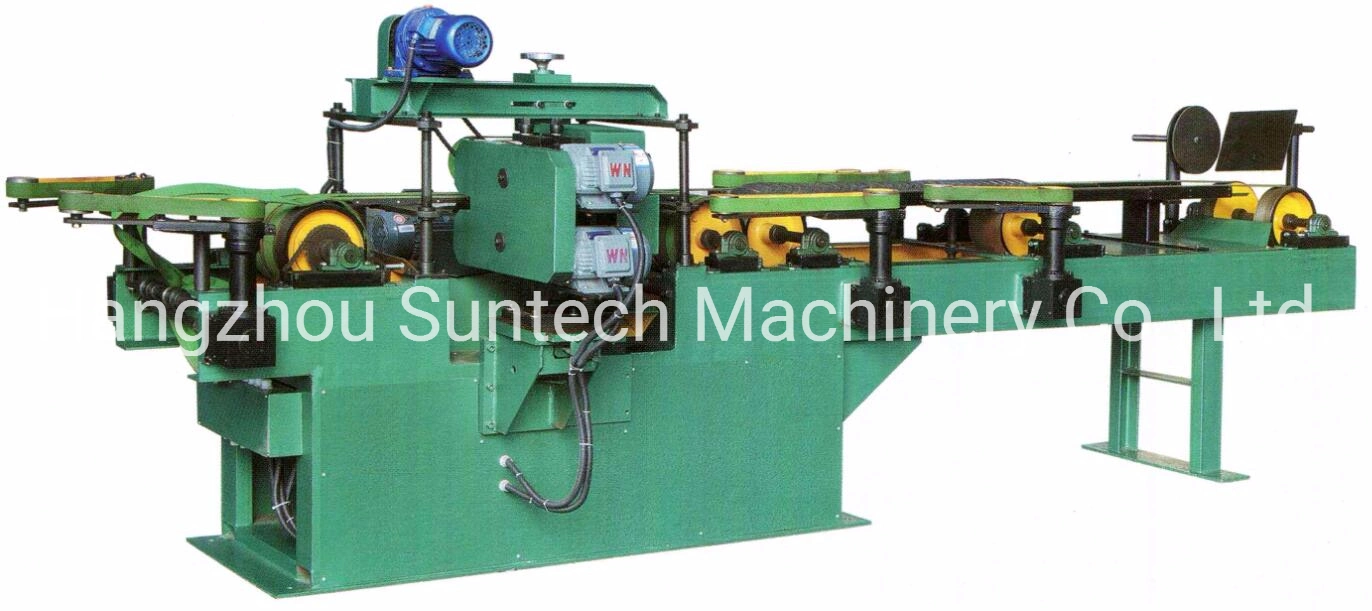

Welding Electrodes Making Machines
Product Description
The machine is for special welding electrode powder coating, it's one of the machines of hydraulic line. This machine adopts mechanical, hydraulic and electrical combined control, also can adjust the input flux quantity and coating pressure. The input stuff is premade briquette, semi-automatic inputting. The machine's coating mould head is 45° type, cylinder is changeable. The eccentricity adjustment is easy and precise, the flux coated welding electrode is fine and smooth
Parameter:
| No. | Spec. | HTY250 |
| 1 | Max pressing and coating pressure | 250ton |
| 2 | Max powder(welding flux) pressure | 98MPa |
| 3 | Max hydraulic pressure | 24.6MPa |
| 4 | Wire feeding speed | ~480m/min |
| 5 | Flux feeding capacity | 0-16L/min |
| 6 | Wire feeding mode | 45°(water cooling) |
| 7 | Working center height | 1050mm |
| 8 | Total power | 30KW |
| 9 | Flux cylinder size | φ190*850 |
| 10 | Production capacity | 2800 ton/year |
| 11 | Overall dimension | 4450*1500*1650mm |
| 12 | Net weight | 8150kg |
Related equipment:
Straightening and cutting machine
Welding wire feeding machine
Welding flux mixer
Briquette presser
Hydraulic powder coating machine
Screw powder coating machine
Electrodes conveyor
Eccentricity test machine
Packaging & Shipping
We pack it by pallet, or according to the customers' specific requirements.
Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.
Any doubt Please contact us.
Company Information
We Suntech Machinery has been in filed for more than 10 years. All the products of our company are manufactured according to the national industry standard, enterprise standard and advanced international group standard.
If you have any interest in our chain link fence machine, please feel free to contact with us.
FAQ
1. What's the size of the welding electrode.
2.What's the requirment of the speed.
