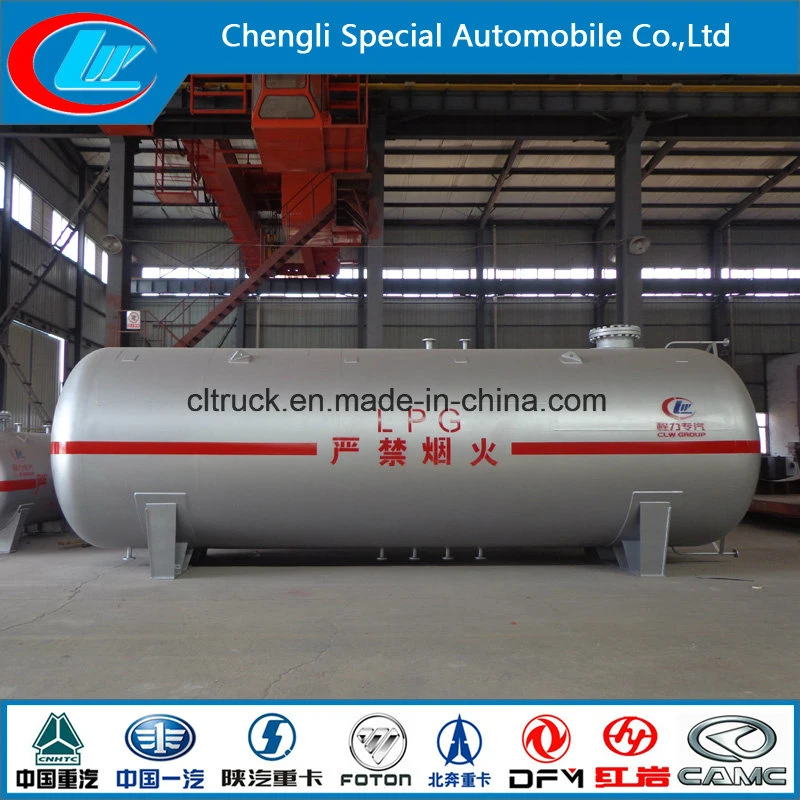

LPG storage tank 100cbm gas tank truck with safety valve

LPG Storage Tank 100cbm with Safety Valve gas tankerFeatures:1. Our LPG product: LPG tanker (5cbm to 120cbm); LPG container tank (20ft, 40ft); LPG semitrailer2. New design: Attractive appearance and safety in usage 3. Certificate ISO9001 and 3CWe\'re expecting friends from all over the world to come to visit our factory.4.

Featured Products

LPG Storage Tank 100cbm with Safety Valve gas tanker
LPG Storage Tank 100cbm with Safety Valve Gas Tanker

Features:
1. Our LPG product: LPG tanker (5cbm to 120cbm); LPG container tank (20ft, 40ft); LPG semitrailer
2. New design: Attractive appearance and safety in usage
3. Certificate ISO9001 and 3CWe're expecting friends from all over the world to come to visit our factory.
4. High quality& resonable price

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

LPG tank container brief detail:
1)Designing pressure:0.7~2.16Mpa  Designing temperature:500C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3)We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality ,its matching is complete.
 5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel

Parameter of the LPG storage tank
ItemParameter









Tank
Description of LPG tank50CBM LPG storage tank
Overall dimensions (mm)11508*2428*3018
Curb weight(kg)11140
Filling weight(kg)19950
Type of vesselThe third kind
Design pressure1.77MPa
Max working pressure1.61MPa
Design temperature-19~50ºC
Filling mediumLiquid petroleum gas (propane)
Corrosion allowance1.0mm
Volume50 CBM
Thermal treatmentThe entirety
Filling capacity420~450kg/CBM
Material of the tankQ345R
Hydraulic test pressure2.22 M Pa
Gas tight test pressure1.77 M Pa
Cylinder thickness14mm
Head thickness14mm
Service time10 years
Accessory for the LPG storage tank
Liquid level indicatorTypeUNZ-518C14
Version of the indicatorMagnetic type liquid level indicator
Normal pressure2.5M Pa
Scope of testing50-2300mm
Precision2.5
Safety valveModelA42F-2.5-80
VersionBuilt-in
Normal pressure2.5 M Pa
Normal diameterDN80
Opening pressure1.68~1.76M Pa
Re-seating pressure>=0.8 times of the opening pressure
Loading and unloading systemNormal diameterFeed pipDN50
Drain pipDN50
Admission portDN50
Sewage outfall portDN50
Vent nozzle portDN50
StandardGB150 <pressure vessel>  TSG R0004-2009
Safety fitting for selectionSafety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
SpecificationDesigned Pressure: 1.66Mpa
Filling Ratio: 0.42 kg/L
Working Temperature:-50ºC
Corrosion Allowance: 1mm
Payment term30%T/T paid in advance, 70%T/T paid before delivery
