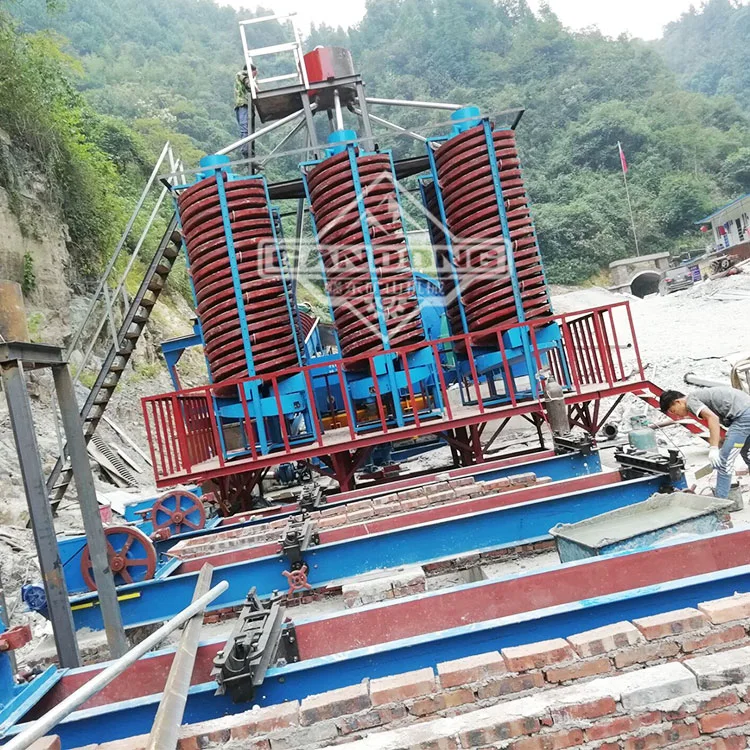

Spiral concentrator/Spiral chute
Extremely good performance and effects in processing placer of beach, riverside, seashore and stream.
Applications
It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.
Features
Reasonable structure and small area occupation
High recovery, high efficiency, and precise separation
Non-required power
Light in weight, anti corrosion, rust and wear resistant
Simple installation and Minimal maintenance requirements
Low operating cost and long working life
Reliable running with minimal operator attention
Strong adaptability to fluctuation of feeding amount, density, size and grade
The surface of emery forms strong friction the concentration effect surpass plastic surface
Descriptions
Spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.
The product is made of the fiberglass lined with wear-resistant resin and emery cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Technical Specifications
our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified.
We can make a special mineral processing approach for you with least cost & simplest way. We also provide all small/lab testing mining equipment, welcome to contact me for the details. Please do not hesitate to contact for possible business co-operation.
Now our products have been exported to over 57 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our faith: Customer is the god.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
Extremely good performance and effects in processing placer of beach, riverside, seashore and stream.
Applications
It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.
Features
Reasonable structure and small area occupation
High recovery, high efficiency, and precise separation
Non-required power
Light in weight, anti corrosion, rust and wear resistant
Simple installation and Minimal maintenance requirements
Low operating cost and long working life
Reliable running with minimal operator attention
Strong adaptability to fluctuation of feeding amount, density, size and grade
The surface of emery forms strong friction the concentration effect surpass plastic surface
Descriptions
Spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.
The product is made of the fiberglass lined with wear-resistant resin and emery cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Technical Specifications
our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified.
| Specification | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Spiral Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | |
| Spiral Pitch(mm) | 1200 | 720/540 | 900/720 /540 | 675/540 /405 | 450/360 /270 | 240/180 | |
| Ratio of Pitch To Diameter | 0.6 | 0.48/0.36 | 0.75/0.6 /0.45 | 0.75/0.6 /0.45 | 0.75/0.6 /0.45 | 0.6/0.45 | |
| Lateral Obliquity | 9° | 9° | 9° | 9° | 9° | 9° | |
| Starts | 3 | 4 | 4 | 4 | 2 | 2 | |
| Feeding Sizes(mm) | 2.00-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
| Feeding Density (%) | 30-55 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 | |
| Capacity(t/h) | 7-10 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 | |
| Dimension (mm) | Length | 2120 | 1600 | 1360 | 1060 | 700 | 460 |
| Width | 2120 | 1600 | 1360 | 1060 | 700 | 460 | |
| Height | 5600 | 5300 | 5230 | 4000 | 2600 | 1500 | |
| Weight (kg ) | 900 | 800 | 600 | 400 | 150 | 50 | |
We can make a special mineral processing approach for you with least cost & simplest way. We also provide all small/lab testing mining equipment, welcome to contact me for the details. Please do not hesitate to contact for possible business co-operation.
Now our products have been exported to over 57 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our faith: Customer is the god.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
