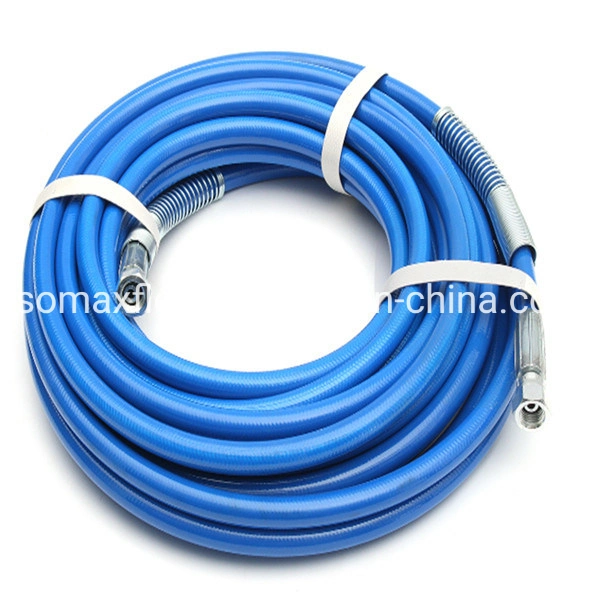

Blue airless spray painting hose
Temperature Range: For solvents,paints,hydraulic fluids -40'C to +93'C
Fittings: BSP or NPS
Inner tube: Polyamide
1.BLUE AIRLESS SPRAY PAINTING HOSE EXCEEDS SAE 100R7
Application: Airless paint spray systems for 228 to 360 bar. Suitable for applications requiring chemical resistance to solvents and aggressive fluids. Specially suitable for pulsating electric piston pumps
Temperature Range: For solvents,paints,hydraulic fluids -40'C to +93'C
Fittings: BSP or NPS
Inner Tube: Polyamide
Reinforcement: two layers of braided high resistance synthetic fiber
Cover: Pin pricked anti-abrasion polyurethane

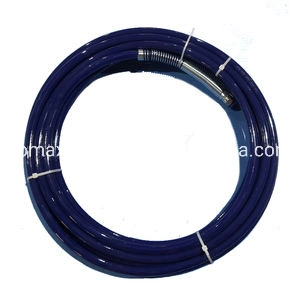

2.BLUE AIRLESS SPRAY PAINTING HOSE
Application: Airless paint spray systems for 100 to 350 bar. Suitable for applications requiring chemical resistance to solvents and aggressive fluids. Due to low permeation value of polyamide, the hose is also suitable for industrial gases
Temperature Range: For solvents,paints,hydraulic fluids -40'C to +93'C
Fittings: BSP or NPS
Inner Tube: Polyamide
Reinforcement: Single braid of steel wire
Cover: Polyurethane, Blue Colour, Pin pricking (Optional)
Some Related Reference Standard for you:
We have full series of SAE and EN standard, including:
Wire braided: SAE100 R1AT/DIN EN 1SN, SAE100 R2AT/DIN EN 2SN, SAE100 R16, SAE100 R17
Wire spiral: SAE100 R9,SAE100 R12,SAE100 R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE100 R3, SAE100 R6, SAE100 R5
Thermoplastic: SAE100 R7, SAE100 R8
PTFE:SAE100 R14
INDUSTRIAL HOSE
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Propane hose, Twin hose
PVC HOSE
PVC Steel Reinforced Hose--for water suction and conveying.
PVC Fiber Reinforced Hose--For food grade liquid.
PVC Helix Suction Hose--plastic spiral reinforced.
PVC Garden Hose--for home and agriculture usage.
PVC Layflat Hose--agriculture irrigation and industry watering.
CONVEYOR BELT
STEEL CORD CONVEYOR BELT
MULTI-PLIES TEXTILE CONVEYOR BELT
PVC FLAME RESISTANT CONVEYOR BELT
PVG FLAME RESISTANT CONVEYOR BELT
PU HOSE--High abrasion resistant to dust.
HOSE FITTINGS
HOSE PROTECTOR
SILICONE HOSE
RADIATOR HOSE
