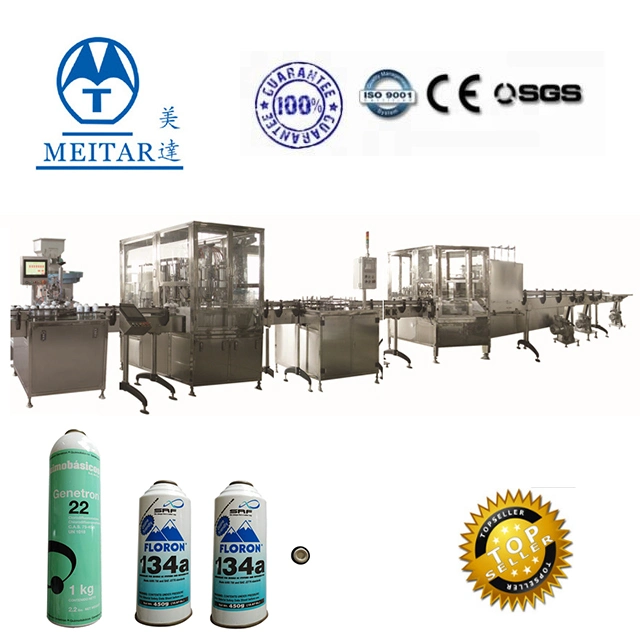

QGQGS1000 Under Cap Refrigerant R134a Gas Can Filling Machine Line
Product description
This refrigerant gas filling machine line has the advantages of high working efficiency, high filing accuracy and high automation. It is designed to fill F12, F22, R134a and other refrigerant gases with under cap filling process. The line is composed of empty can arranging machine, automatic cap placing machine, automatic under cap filling main machine, automatic weighing machine, automatic water bath leakage testing machine, special belt conveyor for coding printer and packing table with conveyor. It is an ideal option for big scale refrigerant gas manufacturers.
KEY BENEFITS:
- Fully pneumatic control
- Wide suitability
- High filling accuracy
- Easy to use and maintain
TECH DATA:
| Technical parameter | |
| Applicable Valve | 25.4mm |
| Workable Can Diameter and Height | φ38-φ75mm |
| H:100-330mm | |
| Filling Accuracy | ≤±1% |
| Sealing Accuracy | ≤3% |
| production Capacity | 1500-3000cans/h |
| Gas Loss | ≤3% |
| Working air Pressure | 0.8-1Mpa |
| Max. air Consumption | 4-5m3/min |
| Vacuum Degree | 0~-95kpa |
Main Features
2) It has intuitive and convenient operation, measuring accurate.
3) Fully in accordance with the GMP standard production and passed CE certification.
4) No bottle no filling
Detailed Images
Name: Non-tube valve inserting machine
The machine is consisted of vibration sorter, Valve feeding mechanism, automatic valve inserting mechanism and intelligent control system.
Name: Under cap filling machine
This machine includes refrigerant gas pressure boosting system.metering system and PLC control system with touch screen. Super size TET-Lcdtouch screen makes a friendly communication interface. This machine has the feature of high automation. easy parameter setting,safety and reliable running.
Name: Automatic weighting machine
This machine adopted advanced weighing sensor, Siemens PLC controlling system and Schneider low-voltage apparatus; the whole machine is fully explosion-proof, and with the function such as adjustable stepless motor, human-computer dialogue interface, related fault and waiting for feeding indicator, it could detect the weight of each finished can, and reject the unqualified can automatically.
Name:Automatic water bath leak tester
The machine has an explosion proof motor and is equipped with an automatic overload breaker to guarantee the safety running. The explosion proof electric heating tubes installed in the water tank can quickly heat up the water to a desired temperature and automatically control the temperature. The hanging jig is tightly clamped and won't be dropped off. The machine is attached with the automatic all-drying device.
We also have products packing machine line
1.One year warranty
2.Engineers available to service machinery overseas;
3.Professional sellers are always at your service;
4.We can provide customer factory plan,layout, installation,training and so on.
FAQ:
Q1:Are you a factory or trading company?
A1:We are a factory specialized in aerosol filling machine . Such as spray print insectcide ect.
Q2:Where is your factory location? How can I visit there?
A2:Our factory is located in Yangzhou,China.You could visit us by air to Yangzhou Airport then we will pick you up to our factory.
Q3:How does your factory do regarding quality control?
A3:Quality is priority People from Meida always attach great importance to quality controlling from the beginning to the end.
We support to inspect machine before shipment . Our factory has gained TUV and ISO authentication.
Q4:What`s the guarantee if we purchase from you?
A4:All the equipment ordered from us will provide one year quarantee from the delivery date. If there is any wearing part be broken within the warranth and isn`t caused by improperly operation then we would offer then new parts for free.
Q5:How about the after service?
A5:There`s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Layout design and consultancy is available, contact us!
