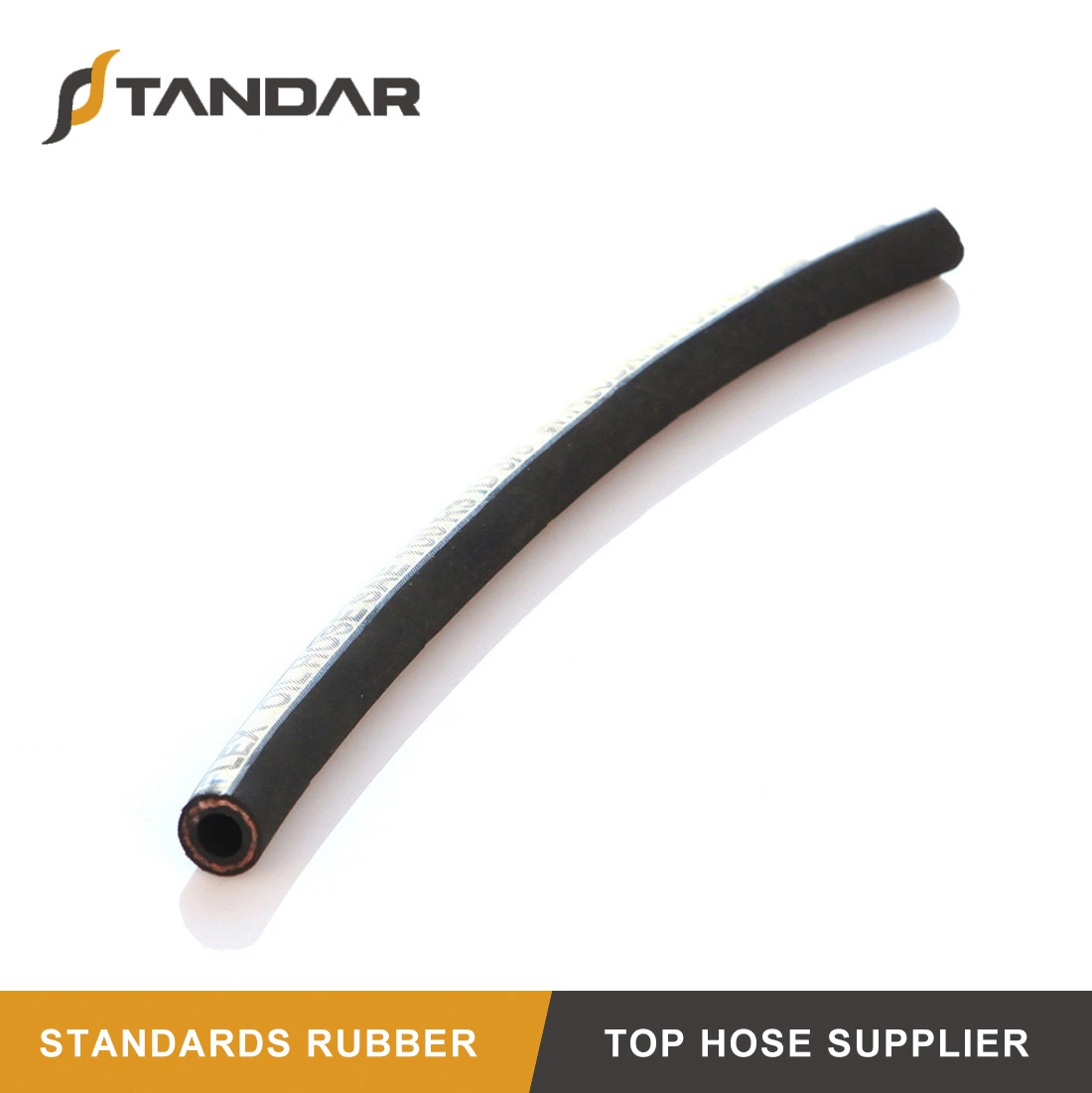

SAE100 R3 Fiber Braided Reinforced Low Pressure Hydraulic Rubber Hose
1.Structure:
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +257°F; -40°C / +125°CINSERT: SHF TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: ONE HIGH RESISTANCE TEXTILE BRAID
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: EN 854 2TE - ISO 4079-1 2TE
2.Key Performance:
EN/DIN and new SAE rated working pressures
Wide range of fluid compatibility
Appearance: Wrap( I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology
Colour: Black,red,blue,yellow,green,gray.
3.Application &Fluids:
EN/DIN and new SAE rated working pressuresWide range of fluid compatibility
Appearance: Wrap( I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology
Colour: Black,red,blue,yellow,green,gray.
4.Technical Data:
| PART.REF. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| TB 2TE 6 | 6 | -4 | 1/4" | - | 13.0 | 75 | 1080 | 300 | 4350 | 40 | 0.13 |
| TB 2TE 8 | 8 | -5 | 5/16" | - | 14.6 | 68 | 980 | 272 | 3940 | 50 | 0.15 |
| TB 2TE 10 | 10 | -6 | 3/8" | - | 16.1 | 63 | 910 | 252 | 3650 | 60 | 0.18 |
| TB 2TE 12 | 12 | -8 | 1/2" | - | 19.2 | 58 | 840 | 232 | 3360 | 70 | 0.22 |
| TB 2TE 16 | 16 | -10 | 5/8" | - | 23.6 | 50 | 720 | 200 | 2900 | 90 | 0.29 |
| TB 2TE 19 | 19 | -12 | 3/4" | - | 26.5 | 45 | 650 | 180 | 2610 | 110 | 0.37 |
| TB 2TE 25 | 25 | -16 | 1" | - | 33.4 | 40 | 580 | 160 | 2320 | 130 | 0.53 |
| TB 2TE 31 | 31 | -20 | 1.1/4" | - | 41.5 | 35 | 500 | 140 | 2030 | 140 | 0.70 |
About Us:
Shijiazhuang Standards Rubber Products Co., Ltd Is a Highly Professional And Experienced Manufacturer
of Rubber Hoses In China.We Have Specialized In This Field Over 20 Years And Always Dedicated To The Producing Of Rubber Hoses In High Quality, With a Wide Range Of Demands From Multiple Industries, Including Engineering, Ocean, Mining, Chemicals Plastics, Transportation, Oil, Metallurgy,etc.
Our Products Include:
1.Wire Braided Reinforced Hose
2.Wire Spiral Reinforced Hose
3.Textile Reinforced Hose
4.Other Industrial Hose
5.Hose Fitting etc.
Packaging &Delivery:
Packing Details :The general package of our products is plastic or woven bag with pallet under the hose.
We can also provide special package according to customer's requests.
Delivery Details : 20-30 days according to the quantity
Why Choose Us:
1. Our Chairman, Who Came From Technical Backgrounds, Devoted In Rubber Industry Since The Year 1990.
2. Professional r&d Team With Rich Experience.
3. Only The Best Raw Materials Natural Rubber From Korea.
4. Only The Most Advanced Equipment From Italy VP.
5. Only The Best Processes And Strict Inspection.
6. Efficient Sales Team With Satisfying Service.
7.We sincerely welcome partners all over the world to visit us for win-win.
