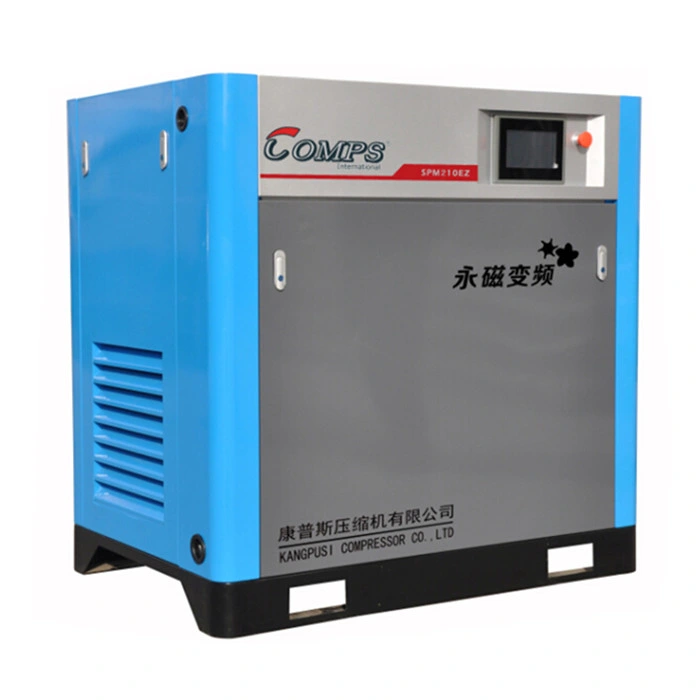

Screw Air CompressorIndustrial Air CompressorAir Compressor

Screw type air compressor structure of a unique design, a compact, stylish appearance, high efficiency, small energy consumption, low noise characteristics and long life, is a smart environment-friendly products. Widely applied in metallurgy, machinery, chemicals, and mining, and electric power industries of the i

Featured Products

Screw type air compressor structure of a unique design, a compact, stylish appearance, high efficiency, small energy consumption, low noise characteristics and long life, is a smart environment-friendly products. Widely applied in metallurgy, machinery, chemicals, and mining, and electric power industries of the ideal gas source equipment.

Advantage:

1.The third generation of advanced rotor and concise intake control system

2.Efficient centrifugal separator oil and gas, gas oil content is small,tube and core of long life .

3. Efficient, low noise suction fan of the full use of export dynamic pressure
    increased effect of heat transfer (air-cooled)

4. Automatic water-cooling system for large air compressor to provide more efficient

5.Fault diagnosis system, the control panel is easy to operate

6. Removable door, equipment maintenance, service convenient

7.Micro-electronic processing so that temperature, pressure and other parameters are closely monitored .
Screw Air Compressor Industrial Air Compressor Air Compression
Screw Air Compressor Industrial Air Compressor Air Compression
Screw Air Compressor Industrial Air Compressor Air Compression


Technical Parameters:
            Model          Discharge PressureDischarge Air VolumeMotor PowerDimension(mm)Discharge Pipc.DiaUnit Weight
SPY35HY1.6MPa1.0m³/min15KW720X720X11201X1"260KG
SPY35EY0.8MPa1.0m³/min7.5KW650X590X10601X3/4"165KG
SPY55EY0.8MPa1.5m³/min11KW720X720X11201X1"200KG
SPY75EY0.8MPa2.3m³/min15KW236KG
SPM1400.8MPa4.0m³/min22KW1250X850X12251X1"375KG
1.0MPa3.6m³/min
SPM2100.8MPa6.5m³/min37KW1380X1050X13251X1-1/4"600KG
1.0MPa5.7m³/min
SPM2450.8MPa7.5m³/min45KW2000X1220X15551X2"1100KG
1.0MPa6.8m³/min
SPM3500.8MPa10.5m³/min55KW2000X1220X15551X2"1300KG
1.0MPa8.9m³/min
1.3MPa7.6m³/min
SPM4200.8MPa13.5m³/min75KW2000X1220X15551X2"1500KG
1.0MPa11.5m³/min
1.3MPa10.1m³/min
SPM5650.8MPa16.5m³/min90KW2350X1765X2060DN652200KG
1.0MPa13.7m³/min
1.3MPa12.1m³/min
SPM7100.8MPa20.5m³/min110KW2350X1765X2060DN652500KG
1.0MPa17.9m³/min
1.3MPa15.8m³/min
SPM7800.8MPa24.0m³/min132KW2350X1765X2060DN652900KG
1.0MPa21.3m³/min
1.3MPa19.6m³/min
SPM10600.8MPa30.0m³/min160KW3420X2220X2130DN804000KG
1.0MPa26.0m³/min
1.3MPa22.0m³/min
SPM11650.8MPa32.0m³/min185KW3420X2220X2130DN804200KG
1.0MPa28.0m³/min
1.3MPa25.0m³/min
SPM12700.8MPa35.0m³/min200KW3540X2440X2290DN1004900KG
1.0MPa31.0m³/min
1.3MPa27.0m³/min
SPM14200.8MPa41.0m³/min250KW3540X2440X2290DN1005100KG
1.0MPa39.0m³/min
1.3MPa35.0m³/min


PRODUCT HIGHLIGHTS

1.The brand power,reliable quality, stable performance.
   The harsh thermal equilibrium serviceability can guarantee that the machine work effectively under high temperature environment  (≤40ºC);

2.Unique patent design, light load startup system;

3.Efficient cooling system, divided into three parts: water- cooled ,mid- cold, oil cold, which ensure the    reliable operation of diesel engine, and it's suitable for high temperature working environment;

4.Independent research and development of the opposite door design, rational layout, which is easy to do regular maintenace ,with advantages of the fixed and portable compressor;

5.A single point lifting, forklift hole device, equipped with drag ring.It is suitable for repair car transport,easy to transfer and installation of the unit;

6.Waterproof and dustproof design, which is suitable for outdoor hard working environment;

7.According to customer requirements, the heating boiler and remote components is available for cold starting;


Product Applications:
Screw Air Compressor Industrial Air Compressor Air Compression
