SUD355H Butt Welding Machine with Trolley/HDPE Butt Welding Machine/Plastic Welding Machine/Electrofusion Welding Machine/HDPE Butt Welder
Brief:
Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:

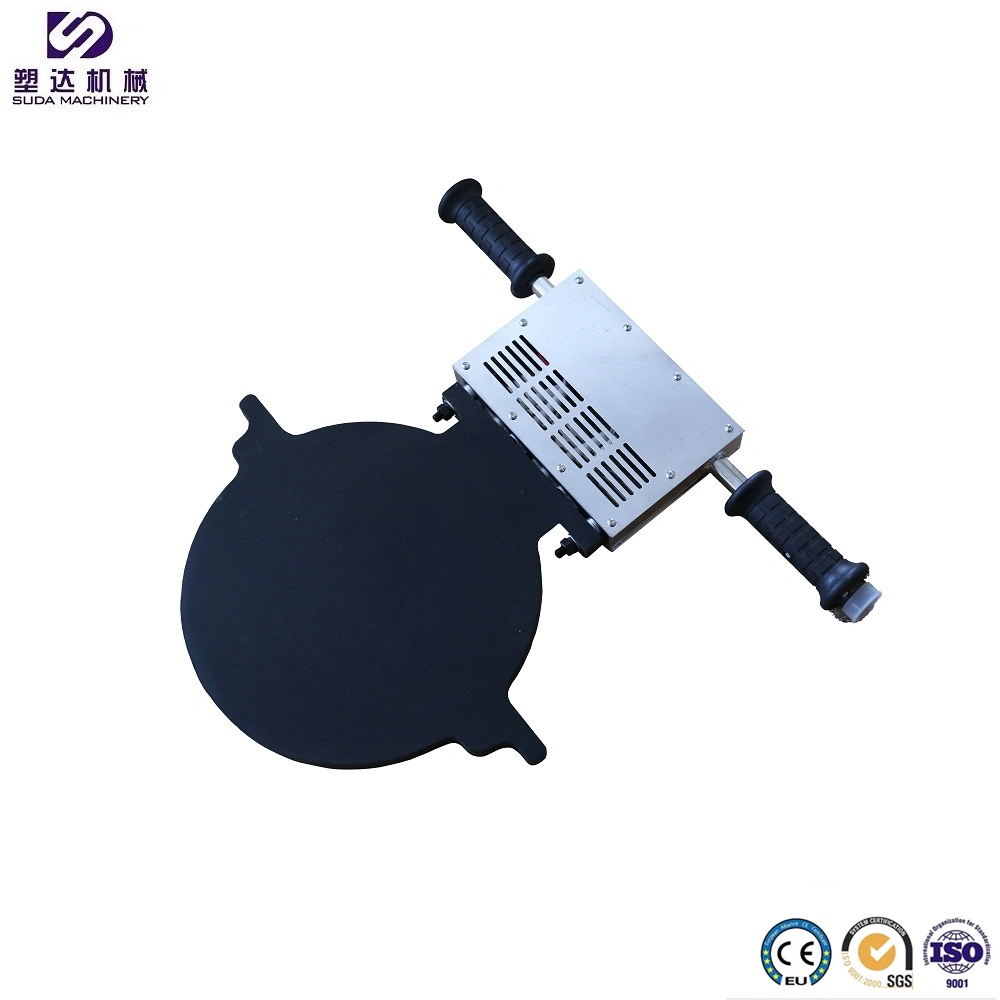

1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
SUD355H Specification
| Model | SUD355H | ||
| Welding Range(mm) | 90 110 125 140 160 180 200 225 250 280 315 355 | ||
| Heating Plate Max.Temp. | 270ºC | ||
| Temp.Deviation in Surface | ≤±5ºC | ||
| Working Voltage | 220V 50/60HZ | ||
| Heating Plate Power | 3.6KW | ||
| Planning Tool Power | 1.1KW | ||
| Hydraulic Unit Power | 0.75KW | ||
| Total Power | 5.45KW | ||
| Weight | 260KG | ||
| Packing | Wooden Box | 2 Wooden Boxes | |
| Volume | 1.1CBM | ||
More Pictures
Accessories
Factory Processing
Construction Photos
Exhibition
Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
