SAE 100R16 Two Wire Braid Hydraulic Hose
Exceed SAE 100R16
Structure of SAE 100 R16 Hose"
Tube: Black, oil-resistant Nittrile (BTR) tube
Reinforcement:Two braids of high tensile steel wire reinforcement
Cover: Oil and abrasion resistant, black Neoprene (CR) cover for long wear
Temperature range: -40° to +212° F
Double wire braid. Half-bend radius. No skiving required. Recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Meets or exceeds all SAE 100R16 specifications.
The most featured characteristic of hydraulic hose r16 is flexible. So this kind of hoses usually are used in small spaces.
Datasheet of R16 High Pressure Hose
Pictures of R16 Hydraulic hose
Exceed SAE 100R16
Structure of SAE 100 R16 Hose"
Tube: Black, oil-resistant Nittrile (BTR) tube
Reinforcement:Two braids of high tensile steel wire reinforcement
Cover: Oil and abrasion resistant, black Neoprene (CR) cover for long wear
Temperature range: -40° to +212° F
Double wire braid. Half-bend radius. No skiving required. Recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Meets or exceeds all SAE 100R16 specifications.
The most featured characteristic of hydraulic hose r16 is flexible. So this kind of hoses usually are used in small spaces.
Datasheet of R16 High Pressure Hose
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | MinimumBendRadius | Weight | |||
| inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 6 | 1/4 | 6.4 | 13.4 | 34.5 | 5000 | 138.0 | 20000 | 50 | 0.27 |
| 8 | 5/16 | 7.9 | 15.0 | 29.3 | 4250 | 117.0 | 17000 | 55 | 0.35 |
| 10 | 3/8 | 9.5 | 17.4 | 27.5 | 4000 | 110.0 | 16000 | 65 | 0.42 |
| 13 | 1/2 | 12.7 | 20.6 | 24.0 | 3500 | 96.0 | 14000 | 90 | 0.52 |
| 16 | 5/8 | 15.9 | 23,8 | 19.0 | 2750 | 62.0 | 11000 | 100 | 0.63 |
| 19 | 3/4 | 19.0 | 27.8 | 15.5 | 2250 | 55.0 | 9000 | 120 | 0.81 |
| 25 | 1 | 25.4 | 35.9 | 13.8 | 2000 | 45.0 | 8000 | 150 | 1.17 |
| 32 | 1-1/4" | 31.8 | 43.6 | 11.2 | 1625 | 45 | 6500 | 210 | 1.49 |

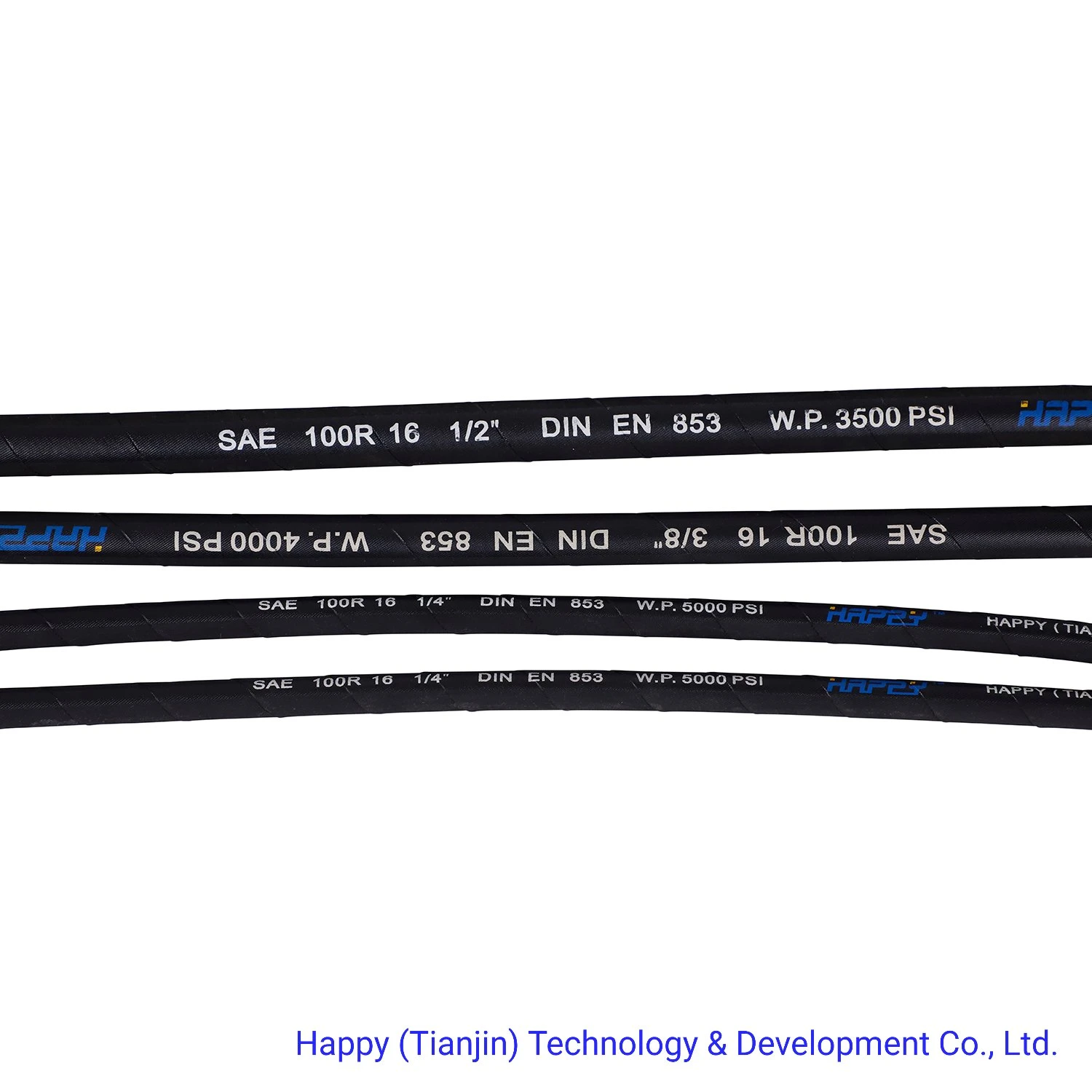

Pictures of R16 Hydraulic hose
