Vacuum Dehydration Lube Oil Hydraulic Oil Coolant Oil Purifier (TYA-150)
1. Oil purifier used hydraulic oil purifier machines
2. Automatic backwashing system
3. Dehydration, degasification, remove impurities
4. CE, ISO
Technology Information
There are usually two forms for water and gas in oil. Dissolved water and gas (below saturation point) exists in the majority of oil system and oil equipment, while free water and gas (above saturation point) in the presence of many oil.
Because these reasons that leakage, seal lax and open style oil storage, which causes the moisture content, the gas subsidence in the oil.
The impurities and dust enters into the oil by reason of leakage, system abrasion and high temperature, to cause the oil decompose and separate colloid material.
The Harm of Containing Water, Gas and Impurities
Oil will oxidate rapidly and product acidic material, eroding the metal surface;
The chemical additive invalidate, reducing the thickness of lubrication film and aggravating the machine abrasion.
The lubrication, cooling, the flow were reduced then accelerating the fatigue of the metal surface;
The ice crystals which formed under low temperature will block elements and lower the systemic rigidity
The slow response of the system run with irregular movement, lower the conduction performance
The high temperature of the oil can't cool effectively.
The oil pump and the power equipment were damaged because of the cavitations erosion.
Usage
The machine is a high vacuum machine with dehydration plant and three high-precision filters, which can remove water, impurities, gas thoroughly and quickly from all kinds of waste Lubrication oil, high viscosity oil, light diesel oil, hydraulic oil turbine oil and refrigerant oil.
What is important is that this machine utilizes a physiochemical reaction to eliminate the acidic component, absorb the sulfur content and the tiny impurities for changing the color to light yellow or limpid. Please check the above picture, the decolorization three filters are filled with Silica Gel
Technical Parameters

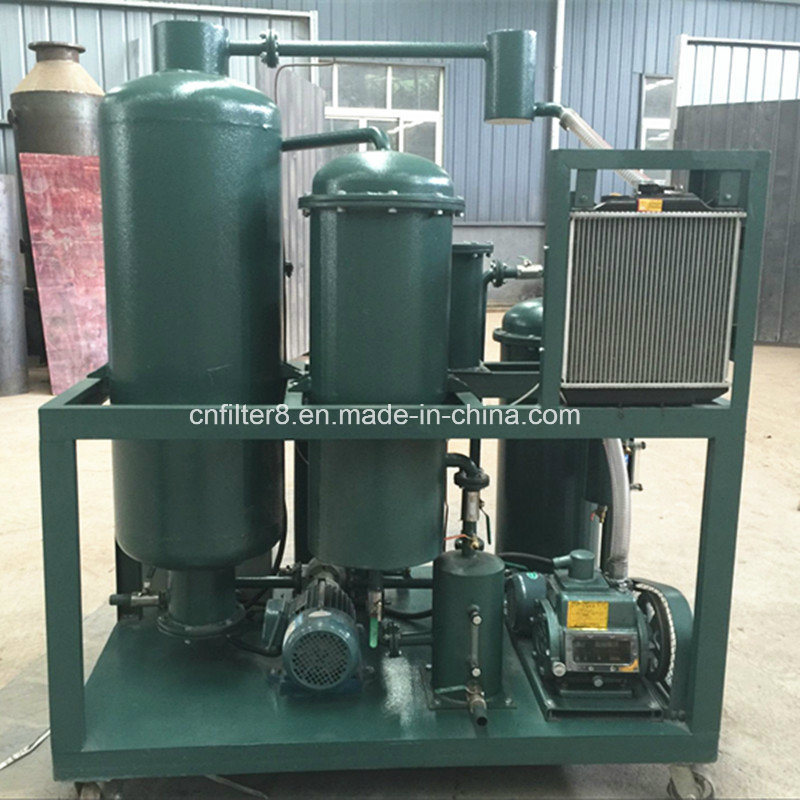

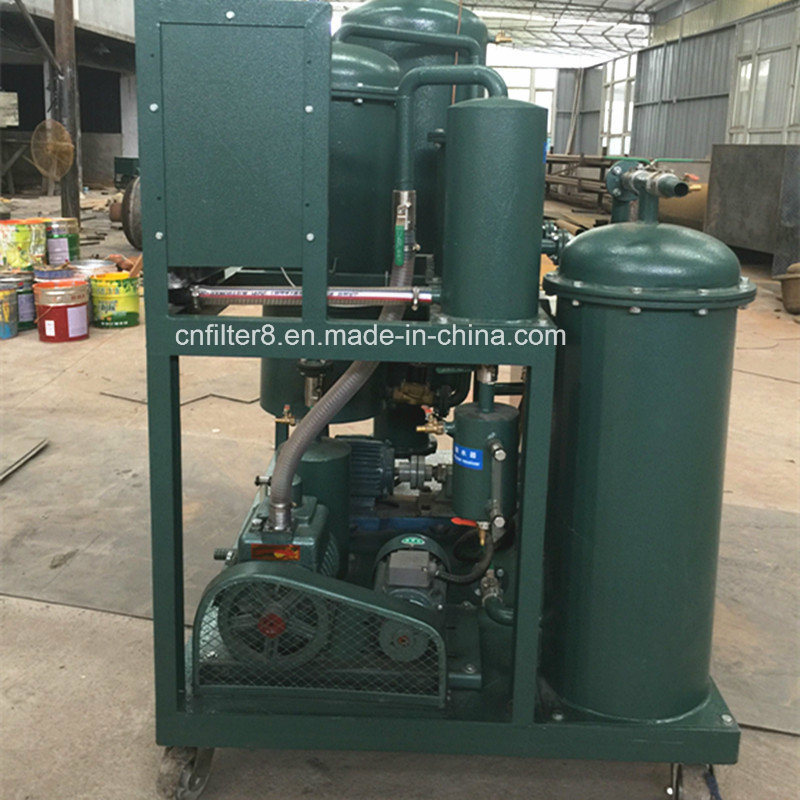

Detailed Image
Main Oil Purifiers
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They play a great role in reducing energy consumption for clients as well as environmental pollution. We provide you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, and waste oil recycling equipment etc.
TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and high voltage testing equipment etc.
Considerate Services
Reply promptly in 24 hours with fluent English and professional knowledge.
Provide best necessary spare parts at low price (some for free)
If there is something wrong with the equipment,we will give a response and provide the solutions in 24h
Provide long term technical support and innovation upgrade guidance.
OEM is available for TOP Products.
Protect sales area, ideas of design and all your private information.
Safe and Timely Transportation
*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.
1. Oil purifier used hydraulic oil purifier machines
2. Automatic backwashing system
3. Dehydration, degasification, remove impurities
4. CE, ISO
Technology Information
There are usually two forms for water and gas in oil. Dissolved water and gas (below saturation point) exists in the majority of oil system and oil equipment, while free water and gas (above saturation point) in the presence of many oil.
Because these reasons that leakage, seal lax and open style oil storage, which causes the moisture content, the gas subsidence in the oil.
The impurities and dust enters into the oil by reason of leakage, system abrasion and high temperature, to cause the oil decompose and separate colloid material.
The Harm of Containing Water, Gas and Impurities
Oil will oxidate rapidly and product acidic material, eroding the metal surface;
The chemical additive invalidate, reducing the thickness of lubrication film and aggravating the machine abrasion.
The lubrication, cooling, the flow were reduced then accelerating the fatigue of the metal surface;
The ice crystals which formed under low temperature will block elements and lower the systemic rigidity
The slow response of the system run with irregular movement, lower the conduction performance
The high temperature of the oil can't cool effectively.
The oil pump and the power equipment were damaged because of the cavitations erosion.
Usage
The machine is a high vacuum machine with dehydration plant and three high-precision filters, which can remove water, impurities, gas thoroughly and quickly from all kinds of waste Lubrication oil, high viscosity oil, light diesel oil, hydraulic oil turbine oil and refrigerant oil.
What is important is that this machine utilizes a physiochemical reaction to eliminate the acidic component, absorb the sulfur content and the tiny impurities for changing the color to light yellow or limpid. Please check the above picture, the decolorization three filters are filled with Silica Gel
Technical Parameters
| Parameters | Unit | TYA-10 | TYA -20 | TYA-30 | TYA -50 | TYA -100 | TYA -150 | TYA -200 | TYA -300 |
| Flow rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Vacuum degree | Mpa | -0.06 ~- 0.095 | |||||||
| Working pressure | Mpa | ≤0.4 | |||||||
| Temperature degree | C | 0~100 | |||||||
| Power supply | 3Phase, 380V, 50Hz(or as needed) | ||||||||
| Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
| Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
| Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
| Inlet (outlet) caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
| Size | mm | 1500x1000x 1600 | 1500x1050x 1600 | 1500x1050x1650 | 1600x1150x1700 | 1750x1150x1750 | 1900x1600x1950 | 1950x1600x1950 | 2100x1600x2000 |
| Weight | Kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
