Vacuum Gear Oil Lube Oil Hydraulic Oil Filtration Machine (TYA-20)
Features
1. Double primary filters structure, three-stage filtration system (primary filter, seconday filter, fine filter) with gradually incresing filtration precision, removing impurities as much as possible.
2. Large area three-dimensional flash distillation technology, removing gas and water efficiently.
3. Strong ability of demulsification, separating oil and water efficiently.
4. Humanized design, all necessary control buttons and indicator lights are equipped on the control panel which provides easy control for operation and supervision.
5. High-efficiency electric heating system, controlled by automatic constant temperature controller, heating the oil uniformity, avoiding oil deterioration, less power consumption.
6. Equipped with double-infrared oil level controller: During the running of the machine, it will control the oil pump start and stop automatically, ensuring the balance between oil inlet and outlet.
7. Equipped with pressure controller: During the running of the machine, if the working pressure exceed the setting value, the machine will stop running automatically.
8. Equipped with emergency stop switch: During the running of the machine, if there has any emergency situation, the machine will stop running immediately.
9. Interlocking protection mechanism, connecting vacuum pump and heater, avoiding blank pumping, blank heating, safe and reliable.
Working Principle
When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated. The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.
The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.

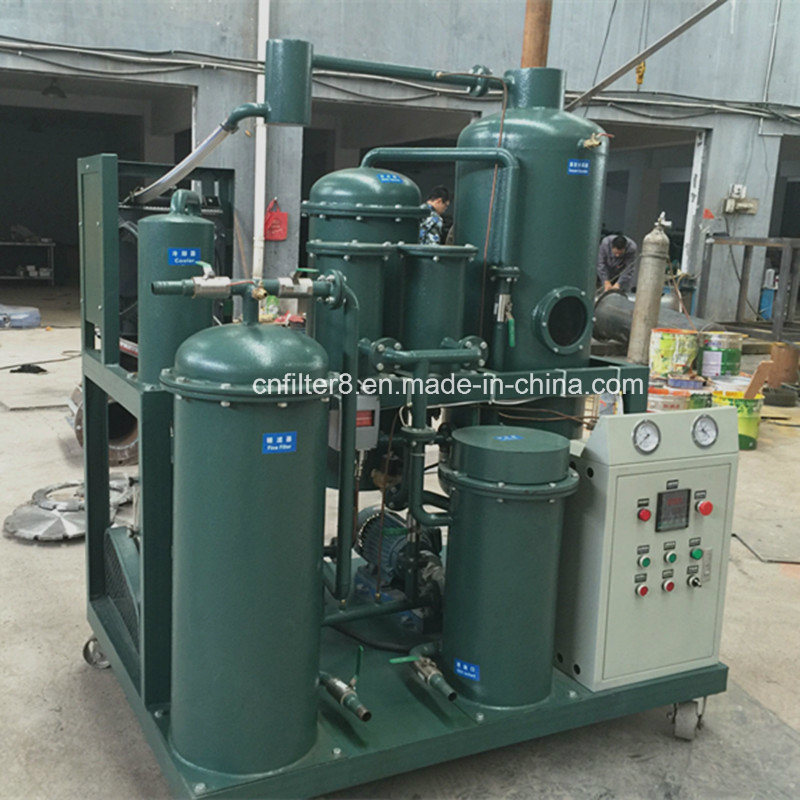

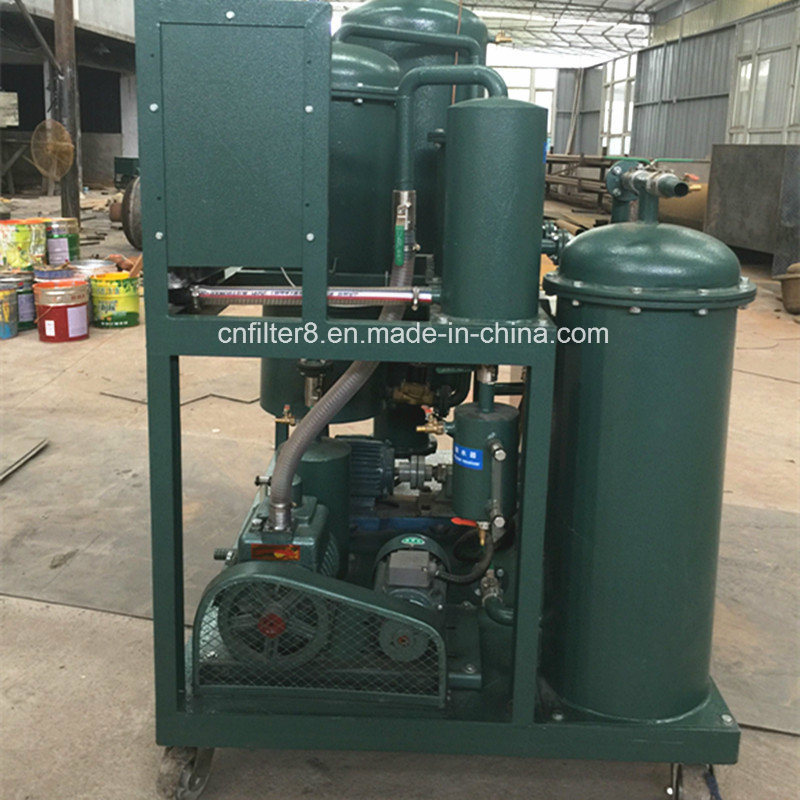

Detailed Image
Technical Parameters
Guarantee Value
What TYA can do for you?
1. Removing gas, water, impurities from used oil
2. Strong demulsification
3. Restoring technical parameters and performance
4. Prolonging oil service life
5. Ensuring industrial equipment working normally and safely
Advantages
A. Environmentally friendly
1. It purifies waste oil with physical methods, no chemical at all.
B. Meet User's Requirement
1. All of physical features of waste oil can be restored as per new oil standard.
2. It removes impurities and restores viscosity, density, demulsibility and moisture content as per new oil standard.
C. Economical
1. 30% electricity consumption compare to other similar products.
2. Automatic design ensures easy operation.
Our Main Oil Filtration Machines
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They play a great role in reducing energy consumption for clients as well as environmental pollution. We provide you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, and waste oil recycling equipment etc.
TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and high voltage testing equipment etc.
Service Commitment
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.
Safe and Timely Transportation
*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.
Features
1. Double primary filters structure, three-stage filtration system (primary filter, seconday filter, fine filter) with gradually incresing filtration precision, removing impurities as much as possible.
2. Large area three-dimensional flash distillation technology, removing gas and water efficiently.
3. Strong ability of demulsification, separating oil and water efficiently.
4. Humanized design, all necessary control buttons and indicator lights are equipped on the control panel which provides easy control for operation and supervision.
5. High-efficiency electric heating system, controlled by automatic constant temperature controller, heating the oil uniformity, avoiding oil deterioration, less power consumption.
6. Equipped with double-infrared oil level controller: During the running of the machine, it will control the oil pump start and stop automatically, ensuring the balance between oil inlet and outlet.
7. Equipped with pressure controller: During the running of the machine, if the working pressure exceed the setting value, the machine will stop running automatically.
8. Equipped with emergency stop switch: During the running of the machine, if there has any emergency situation, the machine will stop running immediately.
9. Interlocking protection mechanism, connecting vacuum pump and heater, avoiding blank pumping, blank heating, safe and reliable.
Working Principle
When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated. The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.
The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.
Detailed Image
Technical Parameters
| Parameters | Unit | TYA-10 | TYA -20 | TYA -30 | TYA -50 | TYA -100 | TYA -150 | TYA -200 | TYA -300 |
| Flow rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Vacuum degree | Mpa | -0.06 ~- 0.095 | |||||||
| Working pressure | Mpa | ≤0.4 | |||||||
| Temperature degree | °C | 0~100 | |||||||
| Power supply | 3Phase, 380V, 50Hz(or as needed) | ||||||||
| Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
| Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
| Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
| Inlet (outlet) caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
| Size | mm | 1500x1000x 1600 | 1500x1050x 1600 | 1500x1050x1650 | 1600x1150x1700 | 1750x1150x1750 | 1900x1600x1950 | 1950x1600x1950 | 2100x1600x2000 |
| Weight | Kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Guarantee Value
| Item | Guarantee indexes |
| Moisture content | ≤50 PPM |
| Demulsification value | New oil≤15min,running oil≤30min |
| Impurity size | ≤1 micron |
| Gas content | ≤0.1% |
What TYA can do for you?
1. Removing gas, water, impurities from used oil
2. Strong demulsification
3. Restoring technical parameters and performance
4. Prolonging oil service life
5. Ensuring industrial equipment working normally and safely
Advantages
A. Environmentally friendly
1. It purifies waste oil with physical methods, no chemical at all.
B. Meet User's Requirement
1. All of physical features of waste oil can be restored as per new oil standard.
2. It removes impurities and restores viscosity, density, demulsibility and moisture content as per new oil standard.
C. Economical
1. 30% electricity consumption compare to other similar products.
2. Automatic design ensures easy operation.
