Wrapped Surface Hydraulic Rubber Hose (DIN EN856 4SH/4SP)
1.STRUCTURE
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C(+120
°C max)
MAX OPERATING TEMPERATURE: 257°F 125°C
INSERT: SHF-TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS.: EN 856 4SH - ISO 3862-1 4SH
2.KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Approved at 1.000.000 fl exing impulse cycles Over standard pressure resistance biological and mineral oils compatibility.
Appearance: Wrap
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray.
3.APPLICATIONS & FLUIDS
Hydraulics: Very high pressure power lines
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols,mineral oils in aqueous emulsion, water.
Datasheet of 4sh Rubber Hydraulic Hose
Pictures of Multipurpose Hose
1.STRUCTURE
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C(+120
°C max)
MAX OPERATING TEMPERATURE: 257°F 125°C
INSERT: SHF-TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS.: EN 856 4SH - ISO 3862-1 4SH
2.KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Approved at 1.000.000 fl exing impulse cycles Over standard pressure resistance biological and mineral oils compatibility.
Appearance: Wrap
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray.
3.APPLICATIONS & FLUIDS
Hydraulics: Very high pressure power lines
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols,mineral oils in aqueous emulsion, water.
Datasheet of 4sh Rubber Hydraulic Hose
| Size | Id | Braid | 0d | Working Pressure | Test Pressure | Burst Pressure | Weight | |
| inch | mm | mm | mm | bar | psi | bar | bar | kg/m |
| 3/4 | 19.0 | 28.4 | 32.2 | 420 | 6000 | 1000 | 1680 | 1.53 |
| 1 | 25.4 | 35.2 | 38.7 | 380 | 5500 | 910 | 1520 | 2.06 |
| 1-1/4 | 31.8 | 41.9 | 45.5 | 325 | 4700 | 830 | 1300 | 2.46 |
| 1-1/2 | 38.1 | 48.8 | 53.5 | 290 | 4200 | 700 | 1160 | 3.35 |
| 2 | 50.8 | 63.2 | 68.1 | 250 | 3600 | 600 | 1000 | 4.55 |

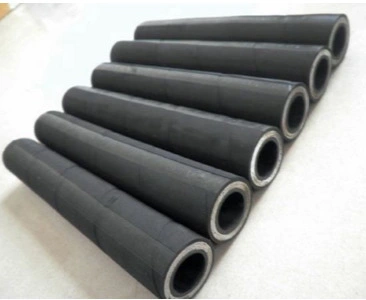

Pictures of Multipurpose Hose
