Specification

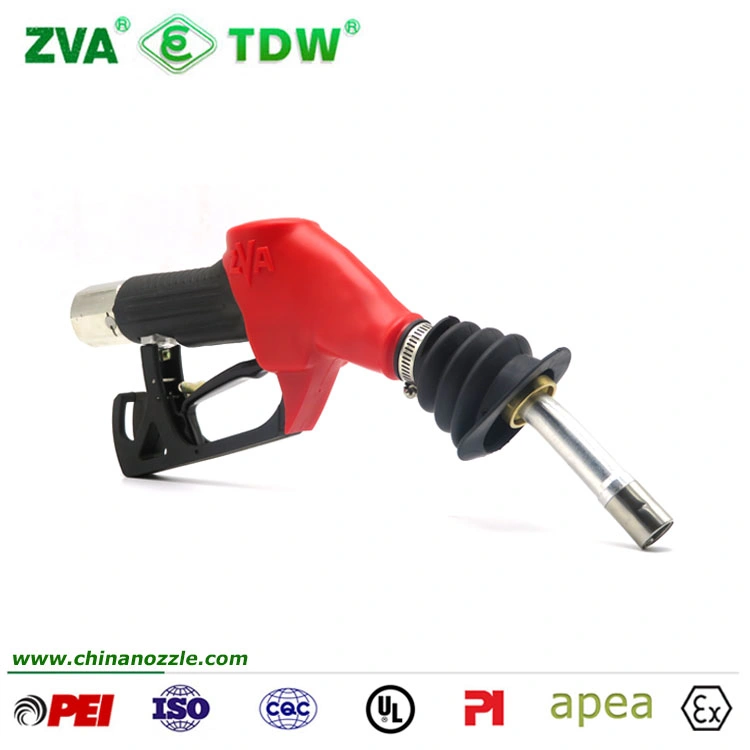

The GRVP version of the ZVA -BT200 GR vapour recovery nozzle has an integrated proportional valve(GVP). This feature provides an ideal low cost solution to enable retrofitting mechanical or upgrade older type dispenser to Stage II VR.
Ø All type of guards are available if requested.
Ø All type of guards with block magnet are available if requested.
Ø "ZVA" logo or blank are available.
Ø 100% Factory tested.
Ø Factory direct selling
Ø One year warranty and guarantee
The GRVP version of the ZVA -BT200 GR vapour recovery nozzle has an integrated proportional valve(GVP). This feature provides an ideal low cost solution to enable retrofitting mechanical or upgrade older type dispenser to Stage II VR.
Ø All type of guards are available if requested.
Ø All type of guards with block magnet are available if requested.
Ø "ZVA" logo or blank are available.
Ø 100% Factory tested.
Ø Factory direct selling
Ø One year warranty and guarantee
| Material | |
| Body | Aluminum |
| Spout | Aluminum |
| Vapour Suction Spout | Bronze |
| Springs | Galvanised or Stainless Steel |
| Diaphragm | Buna-N, Polyurethane, Viton |
| Seals | Buna-N, Polyurethane, Viton |
| Inner Parts | Brass, Bronze, Acetal Resin/Delrin or Ultrapek |
| Covers | PVC |
| Technical Specifical | |
| Working Pressure | 0.05 - 0.35 Mpa |
| Max Flow Rate | 45 L/m |
| Temperature | =A17 |
| Inlet Thread | M34×1.5 |
| Net Weight | 1.17 KG |
| Color Options | |
| Red, Green, Black |
| Order Specifications | |
| Item No. | Proportional Valve |
| ZVA-BT200GR | Without Proportional Valve |
| ZVA-BT200 GRVP | With Proportional Valve |
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
