Main Features
Reliable and powerful Cummins engine with large power storage, reliable performance.
Built-in shift synchronizer gearbox, advanced performance, easy to operate;
The power sprinkler system is made of rust-proof material, large capacity FRP water tank and prolonged operation time.
With infrared night vision function operation monitoring system, the operation is very convenient.
The whole machine has compact structure, low center of gravity design and beautiful shape.
The cab is spacious and enclosed, with ventilation facilities and air conditioning devices (optional configuration), and it is comfortable to operate.

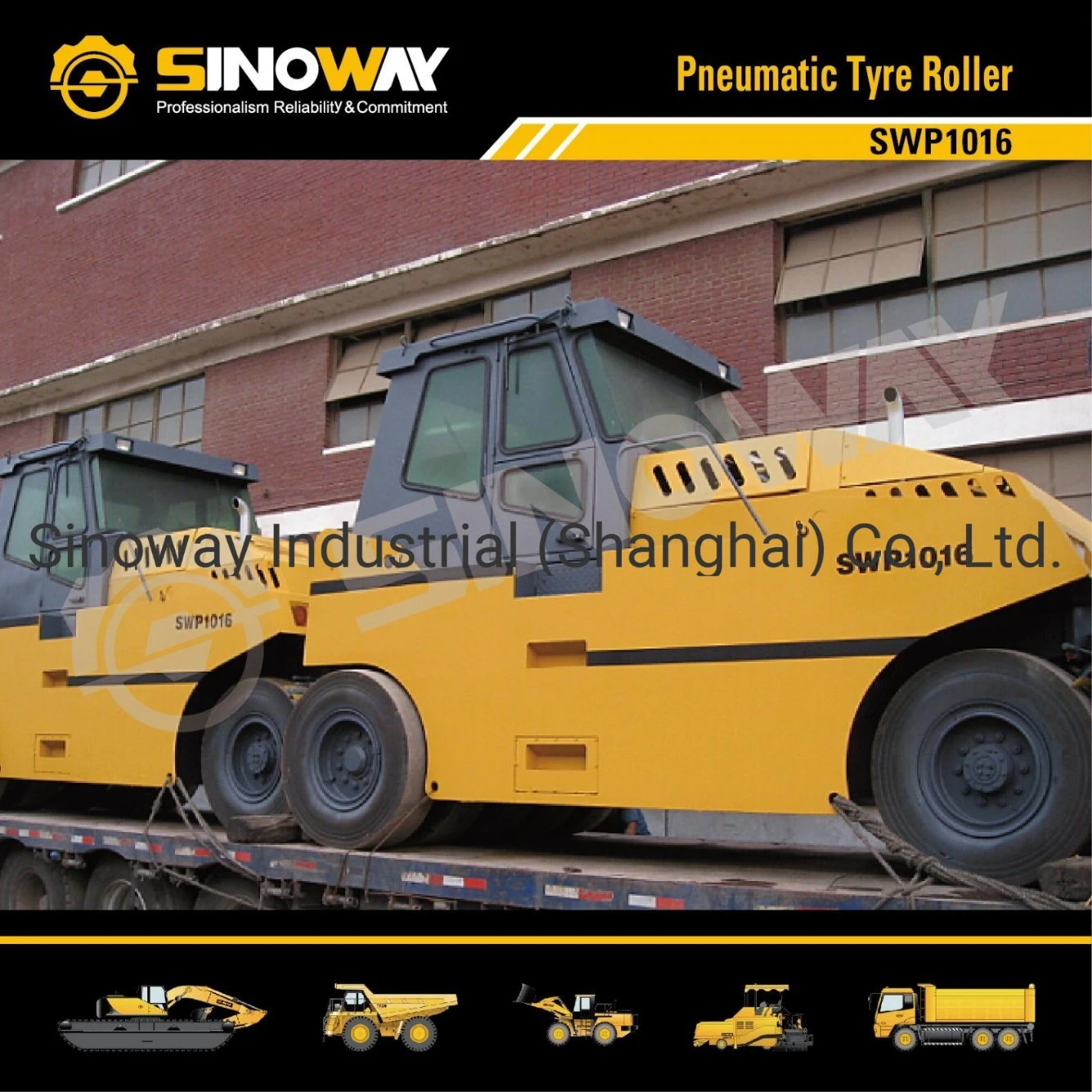

Product Show
Specifications
| Engine | |
| Model | Cummins 6BTA5.9 |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 125kw |
| Rated speed | 2000rpm |
| Transmission System | |
| Type | Hydraulic drive |
| Gradeability | 20% |
| Travelling speed (km/h) | |
| Forward/Reverse | 0 - 14 |
| Travelling pump | Sauer/Rexroth piston pump |
| Travelling motor | Sauer/Rexroth piston motor |
| Axle and Tyre | |
| Type of main reducer | Spiral bevel gear |
| Gear ratio | 1:6.17 |
| Final reducer | Chain driven |
| Chain gear ratio | 1:2.17 |
| Single tire load (F/R) | 2400kg |
| Tyre number (F+R) | 5+6 |
| Tyre size | 11.00-20 |
| Main Technical Specification | |
| Max. operating weight | 26000Kg |
| Min. operating weight | 18000kg |
| Average ground pressure | 0.2 - 0.42MPa |
| Tyre pressure | 0.2 - 0.8MPa |
| Compacting width | 2790mm |
| Vertical oscillation | ± 100mm |
| Steering System | |
| Type | Hydraulic steering |
| Working pressure | 13MPa |
| Steering cylinder | 90 x 50 x 260mm |
| Min. steering radius | 8000mm |
| Braking System | |
| Service brake | Hydraulic brake |
| Parking brake | Oil cut-off brake |
| Service Capacities | |
| Hydraulic tank | 67L |
| Gear box | 10L |
| Fuel tank | 220L |
| Engine crank case | 16L |
| Dimensions | |
| Overall length | 4878mm |
| Overall width | 2800mm |
| Overall height | 3103mm |
| Wheelbase | 3800mm |
| Ground clearance | 300mm |
