Quick Details
Condition:New
Warranty:1.5 years
Applicable Industries:Energy & Mining
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Place of Origin:Shandong, China
Type:Jaw Plate
Machine Type:Drilling Tool
Certification:API
Material:Carbon Steel
Processing Type:Casting
Use:Oil Drilling Rig
Single package size: 110X60X70 cm
Single gross weight:400.000 kg
Package Type:Packaging meet export requirements
Lead Time :
Products Description

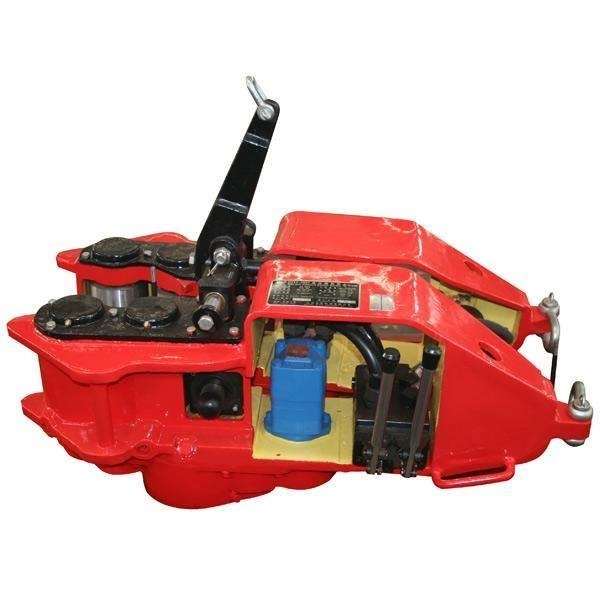

Q254-300Y PNEUMATIC SPINNING WRENCHES
The wrench is the best replacement of rotary rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be freely adjusted whenever necessary. There are two configurations for clamping mechanism: air tyre and air cylinder. There are two driving and controlling styles: pneumatic and hydraulic. The spinning wrench is designed and manufactured according to API Spec 7K "Specification for Drilling Equipment.
Condition:New
Warranty:1.5 years
Applicable Industries:Energy & Mining
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Place of Origin:Shandong, China
Type:Jaw Plate
Machine Type:Drilling Tool
Certification:API
Material:Carbon Steel
Processing Type:Casting
Use:Oil Drilling Rig
Packaging & Delivery
Selling Units:Single itemSingle package size: 110X60X70 cm
Single gross weight:400.000 kg
Package Type:Packaging meet export requirements
Lead Time :
| Quantity(Sets) | 1 - 10 | >10 |
| Est. Time(days) | 15 | To be negotiated |
Products Description
Q254-300Y PNEUMATIC SPINNING WRENCHES
The wrench is the best replacement of rotary rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be freely adjusted whenever necessary. There are two configurations for clamping mechanism: air tyre and air cylinder. There are two driving and controlling styles: pneumatic and hydraulic. The spinning wrench is designed and manufactured according to API Spec 7K "Specification for Drilling Equipment.
| Model | Q140-200 | Q254-250 | Q254-300Y | |
| Drive mode | Pneumatic | Hydraulic | ||
| Size range | mm | 88.9-139.7 | 88.9-254 | 88.9-254 |
| in | 31/2-51/2 | 1931-2-10 | 1931-2-10 | |
| Air Pressure | MPa | 0.5-0.9 | 0.5-0.9 | |
| psi | 72-130 | 72-130 | ||
| Hydraulic pressure rating | Mpa | 14 | ||
| psi | 2000 | |||
| Max. brake torque | Nm | 2000 | 2500 | 3000 |
| Ft.lbf | 1475 | 1840 | 2210 | |
| RPM | 0-90 | 0-120 | 0-95 | |
| Speed | ||||
| Air consumption | m3/min | 10.3 | 15 | |
| ft3/min | 360 | 529 | ||
| Flow | LPM | 120-140 | ||
| GPM | 32-37 | |||
| Size | mm | 1400*530*835 | 1250*570*465 | 1100*560*700 |
| in | 55*21*33 | 49*23*18 | 44*23*28 | |
| Weight | Kg | 378 | 440 | 400 |
| lb | 833 | 970 | 880 | |
