SAE100R15
Descriptions:
Tube: oil resistant, synthetic rubber
Reinforcement: 3/8" and 1" - four spiral wires; 1" to 1-1/2" - six spiral wires
Cover: Oil and weather resistant synthetic rubber
Temperature: -40° F / +212° F, Intermittent use up to 250° F
SAE 100 R15 technical data
| Items number | Hose I.D. | Hose O.D. | Max W.P. | Min B.P | Min.B.R | Weight | ||
| in | mm | Mpa | psi | Mpa | psi | mm | Kg/m | |
| R15-6 | 3/8 | 23.3 | 42 | 6091 | 168 | 24366 | 150 | 0.76 |
| R15-8 | 1/2 | 26.8 | 42 | 6091 | 168 | 24366 | 200 | 0.88 |
| R15-12 | 3/4 | 36.1 | 42 | 6091 | 168 | 24366 | 265 | 1.62 |
| R15-16 | 1 | 42.9 | 42 | 6091 | 168 | 24366 | 330 | 2.18 |
| R15-20 | 1 1/4 | 51.5 | 42 | 6091 | 168 | 24366 | 445 | 3.58 |
| R15-24 | 1 1/2 | 59.6 | 42 | 6091 | 168 | 24366 | 530 | 4.5 |
| R15-32 | 2 | 72.3 | 42 | 6091 | 168 | 24366 | 700 | |

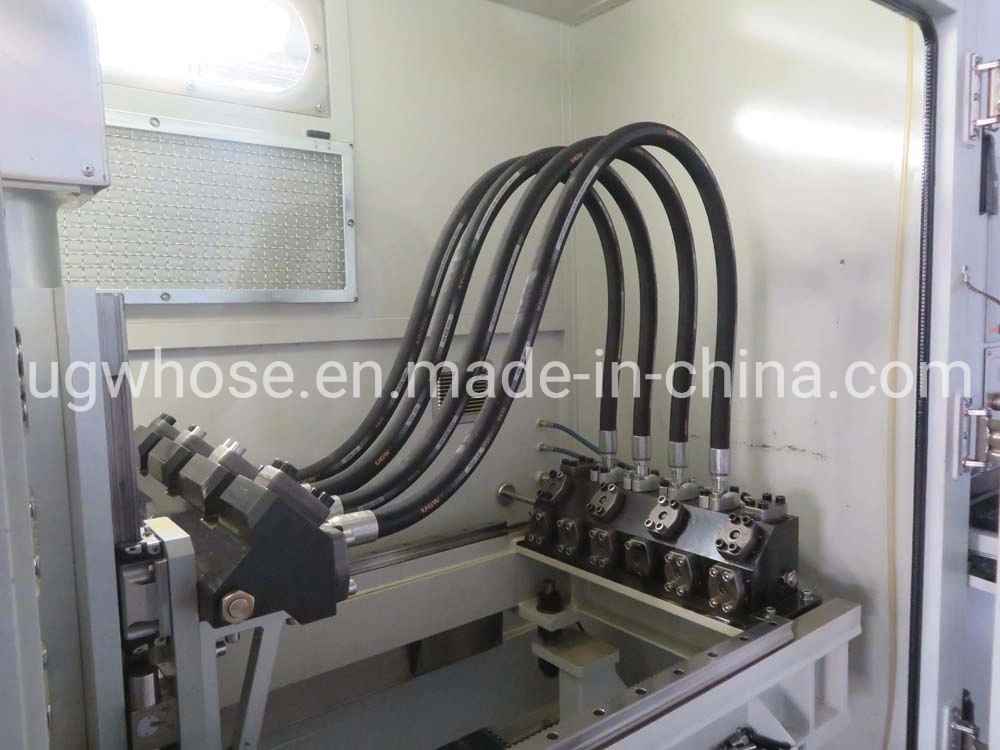

Our Equipment:
Our Packaging:
Standrad packaging: Plastic Belt or as your request.
Application:
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our Factory
* OEM is available
After-Sales Service
* Training how to instal
* Any question, feel free to contact us for 24h
Q1:Payment Term:
A:Usually, 30%T/T in advanced, balance be paid against before shipping
Q2: How many do you accept for min order?
A:Yes. only put an order of 100m
Q3:Can you produce the hose with our own brand?
A:Yes.It is available for OEM Service
Q4:What is the warrantee period?
A:There is 1 year warranty from date of EX-factory
