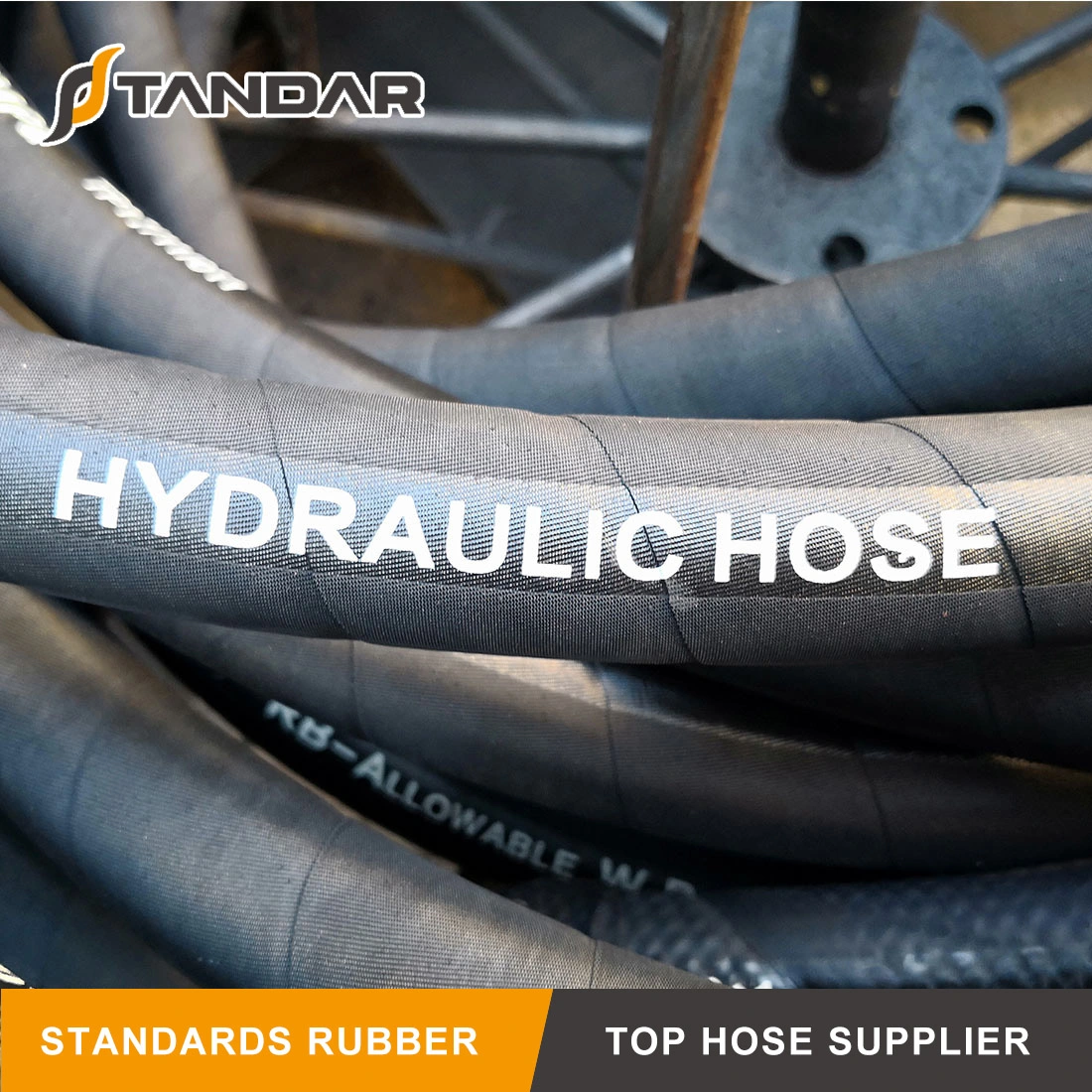

En 856 SAE100 R15 High Pressure steel wire spiral Hydraulic Rubber Hose for Oilfield
1.STRUCTURE
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +250°F; -40°C / +121°CMAX OPERATING TEMPERATURE:257°F; 125°C
INSERT:SHF TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS (DN 19~31); SIX HIGH TENSILE STEEL SPIRALS (DN 38~51)
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: SAE 100 R15 - ISO 3862-1 R15
2.KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Approved at 1.000.000 fl exing impulse cycles Over standard pressure resistance Outstanding ozone and weather resistance biological and mineral oils compatibility
Appearance: Wrap
Branding: Printing and indelible branding with embossed technology
Colour: Black ,red ,blue,yellow,green,gray
3.APPLICATIONS & FLUIDS
Hydraulics:Heavy duty power lines, hydrostatic transmissions
Mineral oils, vegetable oils and synthetic ester based oils, (up to 212°F 100°C), glycols and polyglycols,mineral oils in aqueous emulsion, water
4.TEACHNICAL DATA
| TYPE | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| WS R15 19 | 19 | -12 | 3/4" | 29.0 | 32.0 | 420 | 6091 | 1680 | 24366 | 265 | 1.62 |
| WS R15 25 | 25 | -16 | 1" | 36.0 | 39.2 | 420 | 6091 | 1680 | 24366 | 330 | 2.18 |
| WS R15 31 | 31 | -20 | 1.1/4" | 46.0 | 49.0 | 420 | 6091 | 1680 | 24366 | 445 | 3.58 |
| WS R15 38 | 38 | -24 | 1.1/2" | 54.6 | 57.8 | 420 | 6091 | 1680 | 24366 | 530 | 4.50 |
| WS R15 51 | 51 | -32 | 2" | 68.4 | 72.0 | 420 | 6091 | 1680 | 24366 | 630 | 6.87 |
About Us
Shijiazhuang standards rubber products trading co., ltd is a highly professional and experienced manufacturer of rubber hoses in China.We have our own production base in Hengshui City, Hebei Province. We have specialized in this field over 20 years and always dedicated to the producing of rubber hoses in high quality, with a wide range of demands from multiple industries, including Engineering, Ocean, Mining, Chemicals plastics, Transportation, Oil, Metallurgy,etc.
Our products include:
Rubber Hose: hydraulic hose , industrial hose, hose fitting
Silicone hose: food and medical grade silicone hose, auto silicone tube
PVC hose: PVC layflat hose, PVC Helix Suction & Delivery Hose,
PVC Spiral Steel Wire Reinforced Hose,
PVC Fiber Braided Reinforced Hose
Automotive parts: A/C Hose, fuel hose,brake hose system
DESIGN
Our team comprises members equipped with experiences in almost all fields related to design and development of custom hydraulic hose, industrial hose ,rubber automotive parts. if have any needs your new products or make further improvements, we are here to offer our support.
SAMPLING
It is often the case that goods bought from a Chinese supplier, especially for the first time, fall short of your expectation for one reason or another. Now, our sampling services save you from these worries!
PRODUCING
Committed ourselves to turning out the finest products, we attach the utmost importance to quality standards in production.
QUALITY CONTROLLING
Standards rubber company work closely with our raw material suppliers and engineers for the betterment quality of products. Our controlling in this regard includes thorough inspections throughout the whole process to manufacturing. Sparing you the extra employment of quality control inspectors.
CERTIFICATION
Should your rubber hose require testing and certification to comply with international standards (ISO,FDA, CCS,SGS etc). we can arrange this with independent, fully recognized testing companies.
PACKAGING
One of the main concerns of buyers from China is 'will the packing be suitable to my product?' We understand that the packing is as important. And in some cases, even more important than product itself.
DELIVERY
We can offer the complete package from concept to delivery, arranging everything up until the point your product arrives at your own or distribution hub. Expedient and efficient.
We sincerely welcome partners all over the world to visit us for win-win cooperation!
