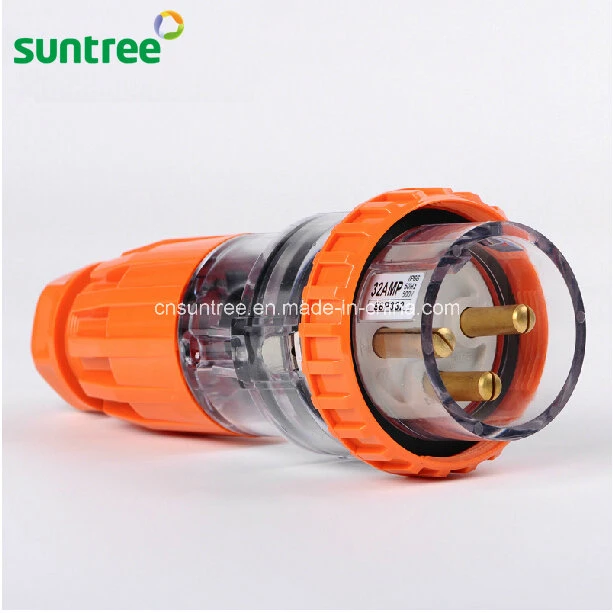

Australia 56PA332 IP66 32A Clipsal Plug Weatherproof Industrial Plug

 1.Single phase 3 pin plug IP66 rated industrial plug,electrical plug adapter,cable plug(56P332) description





Single phase 3 round pin angle plug

Availables in...20A. 32A

Voltage: 250/500V

Code: 56PA320/56PA332



Three phase 4 round pin angle plug

Availables in 10A. 20A. 32A. 40A. 50A

Voltage: 500V

Code: 56PA410/56PA420/56PA432/56PA440/56PA450


Three phase 5 round pin angle plug

Availables in 10A. 20A. 32A. 40A. 50A

Voltage: 500V

Code: 56PA510/56PA520/56PA532/56PA540/56PA550

Certificates: SAA, IQNET, CQC

Other protections: waterproof, UV resistance, Dust-proof, Anti-corrosion, Pollution proof.

Package: inner color box, outside standard carton. 54.5*23.5*45cm/carton, 100Pcs/carton.

Standards of 56 series plugs:

Pin configurations for plugs, sockets and switched socket outlets comply with AS/NZS3123 and switches with appropriate parts of AS/NZS3947.3 & AS/NZS3133.

Features of 56P plugs series:

1, Gland Nut(with 50mm threaded cable entry)

For alternative facility termination.

Note: IP Ratings only apply to cable terminations as per wiring instructions

2, Cable Gland

Very flexible with positive grip to ensure reliable sealing

3, IP66 Rating(in accordance with AS1939)

When engaged in the 66C switched socket outlet, with the hydrant ring fully engaged, an international protection rateing of IP66 is achieved

4, Internal Cable Clamp

Grips two ways and is fast-fixing, preventing the cables(s) from twisting

5, Transparent Polycarbonate Body

Allows instant examinations of connections

6, Stainless steel Combination Head Screws

Easy installation and corrosion resistance

 7, Sturdy Terminal Housing

For years of Reliable service and durability



8, Wide lock Ring

Can be unscrewed and tightened with ease, even when hands are gloved. Provides full sealing with a built-in, sponge-like gasket



9, Clear Pin Surround

 Providing quick and sure location of plug in socket and the protection of pins



Note - IP Ratings only apply to cable terminations as per wiring instructions.



Plug Configurations of 56P Industrial Plugs
