Application
Series TYA vacuum Lubricating oil purifier machine is applied to recover and purify various high-precision lubricating oil such as hydraulic oil, mechanical oil, coolant oil, gear oil, heat treatment oil and so on.
Features
1. Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles.
3. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc. )
4. Automatic backwashing system, improving working efficiency.
5. Advanced medium cooling system.
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters
Parameters | Unit | TYA-10 | TYA -20 | TYA -30 | TYA -50 | TYA -100 | TYA -150 | TYA -200 | TYA -300 |
Flow rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Vacuum degree | Mpa | -0.06 ~- 0.095 | |||||||
Working pressure | Mpa | ≤0.4 | |||||||
Temperature degree | °C | 0~100 | |||||||
Power supply | 3Phase, 380V, 50Hz(or as needed) | ||||||||
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Inlet (outlet) caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
Size | mm | 1500x1000x 1600 | 1500x1050x 1600 | 1500x1050x1650 | 1600x1150x1700 | 1750x1150x1750 | 1900x1600x1950 | 1950x1600x1950 | 2100x1600x2000 |
Weight | Kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Guarantee Value
Item | Guarantee indexes |
Moisture content | ≤50 PPM |
Demulsification value | New oil≤15min,running oil≤30min |
Impurity size | ≤1 micron |
Gas content | ≤0.1% |

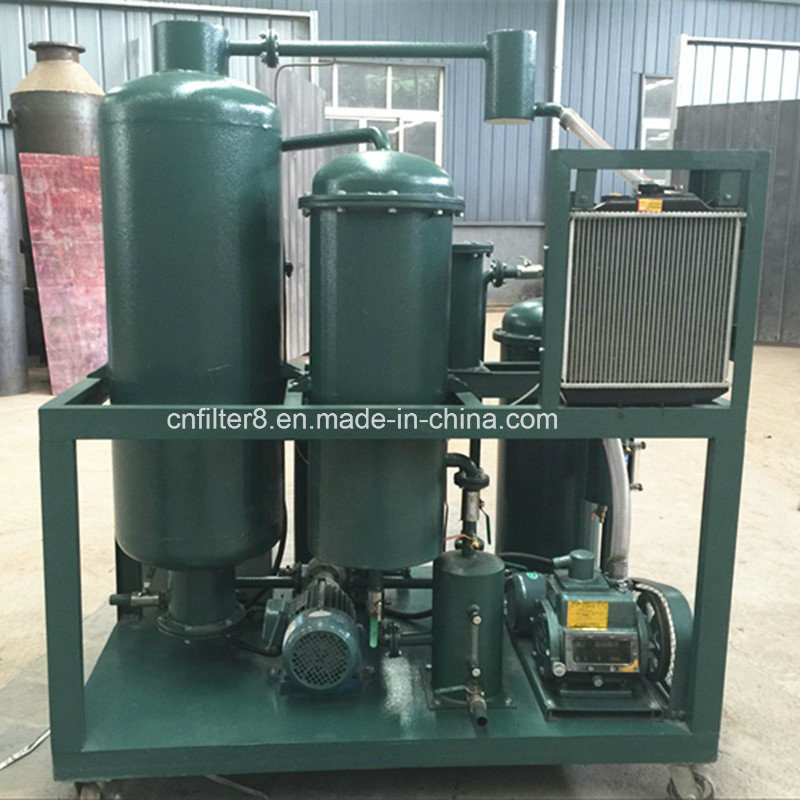

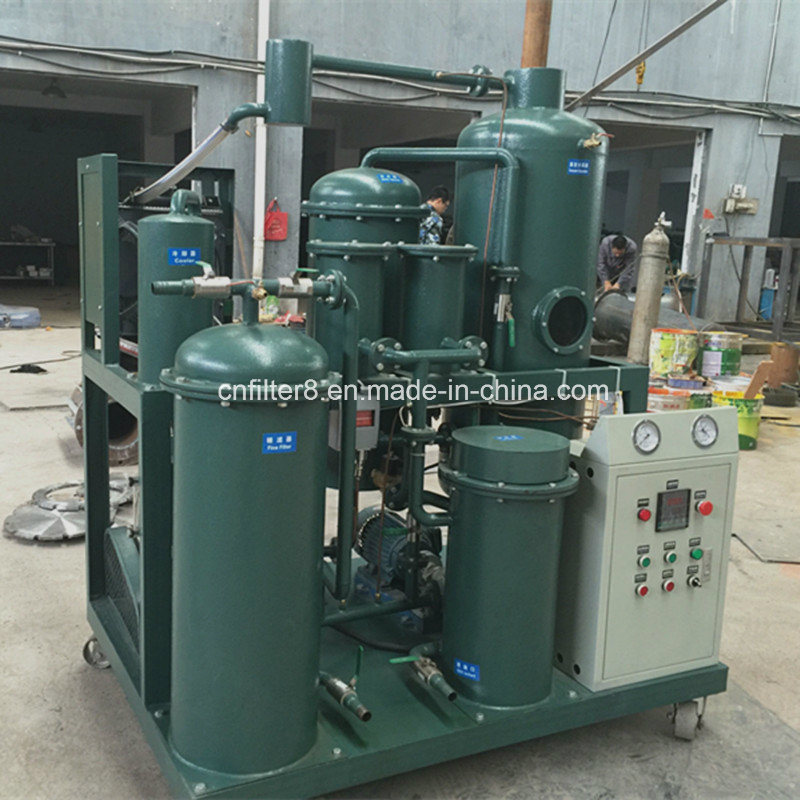

Detailed Image
