High Pressure Oil Resistant Fiber Braided Nylon Lube Hose (R7/R8)
Thermoplastic Lubration Hose R7/R8
1. Tube: Oil resistant, preservative thermoplastic elastomer
2. Reinforcement: Two polyester braid
3. Cover: Thermoplastic elastomer with high ozone and abrasion resistant
4. Color: Black, orange, blue
5. Temperature range: -40ºC to +100ºC
6. Used: Medium pressure thermoplastic hose with a perforated cover. Compatible with petroleum water and synthetic based fluids for mobile equipment , lube lines , blowout preventers, hydraulic lifts and construction machinery.
Specification:
SAE 100R8

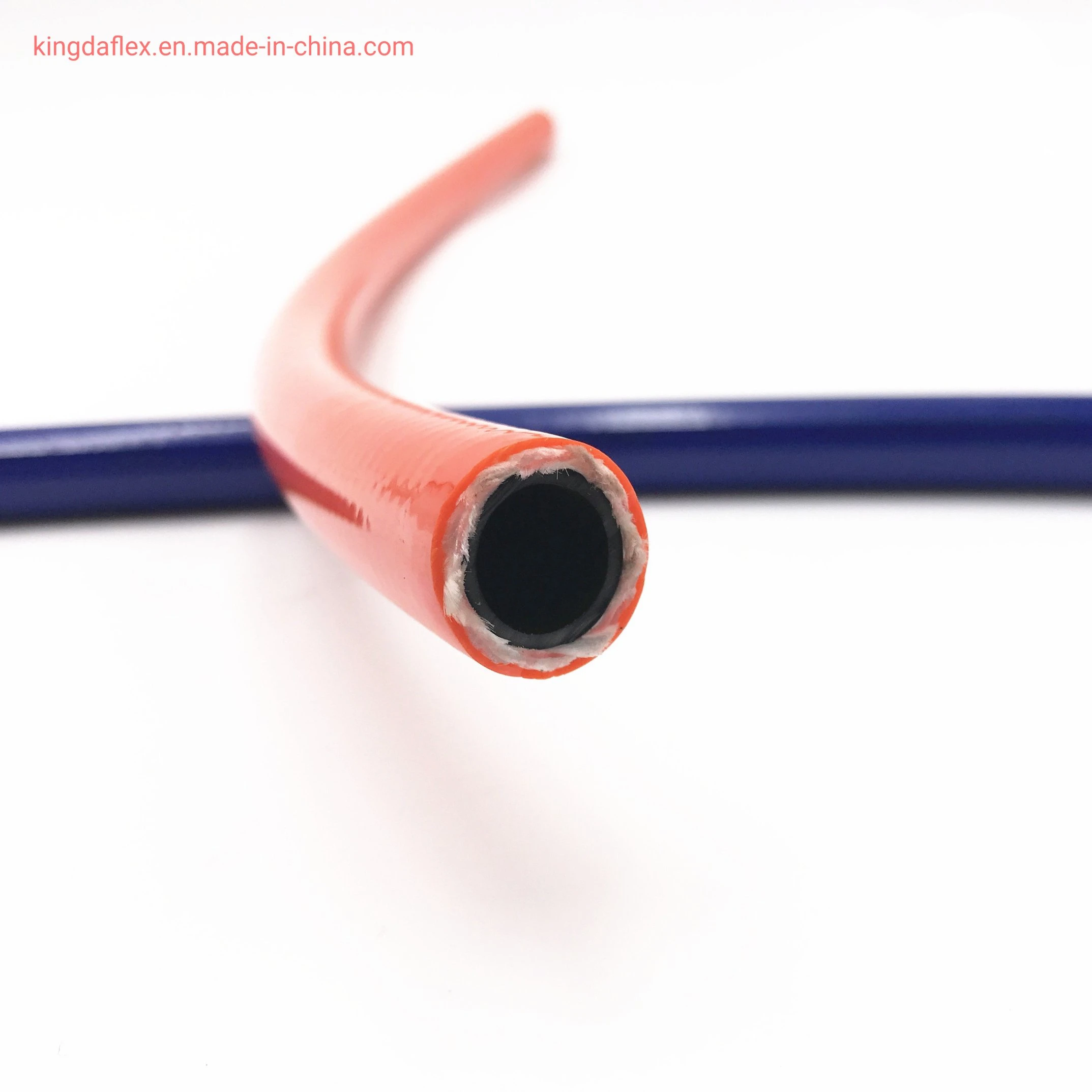

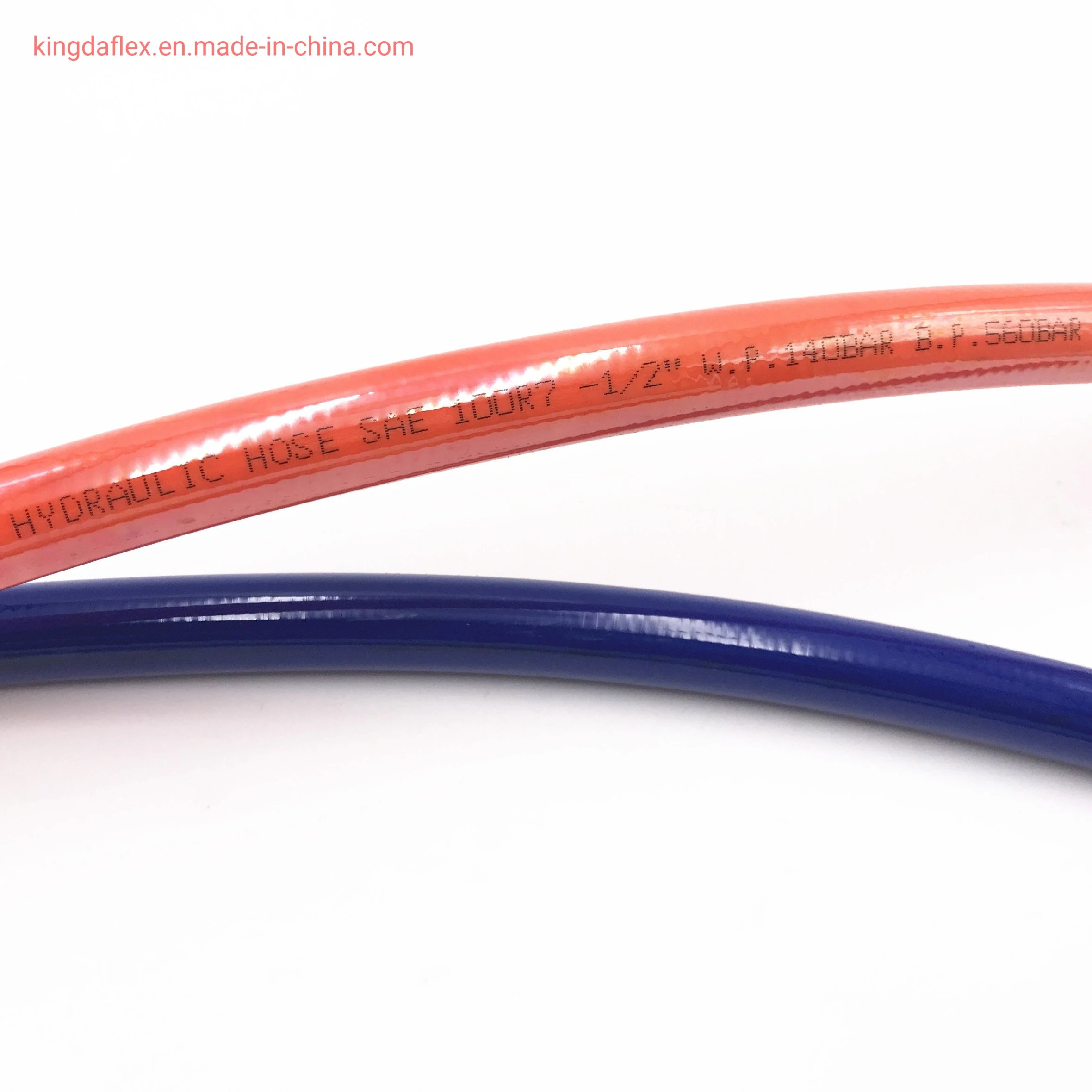

Product Show:
Our Main Product:
1. Hydraulic Hose
SAE 100R1AT/EN853 1SN
SAE 100R2AT/EN853 2SN
SAE 100R5
SAE 100R7/R8
SAE 100R9/R12
SAE 100R14/Teflon hose
EN856 4SP/4SH
2. Air/Water hose
3. Welding hose
Oxygen hose
Acetylene hose
Lpg hose/Propane hose
Twin hose
4. Oil/Water suction and discharge hose
5. Sandblast hose
6. Fire sleeve
Thermoplastic Lubration Hose R7/R8
1. Tube: Oil resistant, preservative thermoplastic elastomer
2. Reinforcement: Two polyester braid
3. Cover: Thermoplastic elastomer with high ozone and abrasion resistant
4. Color: Black, orange, blue
5. Temperature range: -40ºC to +100ºC
6. Used: Medium pressure thermoplastic hose with a perforated cover. Compatible with petroleum water and synthetic based fluids for mobile equipment , lube lines , blowout preventers, hydraulic lifts and construction machinery.
Specification:
SAE 100R8
| Item Code | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | ||||||
| mm | inch | inch | max | MPa | psi | MPa | psi | mm | inch | kg/m | lb/ft | |
| 5 | 5 | 3/16 | 0.57 | 14.6 | 35 | 5000 | 140 | 18270 | 125 | 5 | 0.7 | 0.47 |
| 6 | 6.3 | 1/4 | 0.66 | 16.8 | 35 | 5000 | 140 | 16240 | 180 | 7 | 0.83 | 0.58 |
| 10 | 10 | 3/8 | 0.8 | 20.3 | 28 | 4060 | 112 | 12180 | 240 | 9.4 | 1.3 | 0.87 |
| 13 | 12.5 | 1/2 | 0.97 | 24.6 | 24.5 | 3553 | 98 | 12180 | 300 | 11.8 | 1.7 | 1.14 |
| 16 | 16 | 5/8 | 1.17 | 29.8 | 19.2 | 2784 | 77 | 10150 | 420 | 16.5 | 3.08 | 2.07 |
| 19 | 19 | 3/4 | 1.3 | 33 | 15.7 | 2277 | 63 | 8120 | 500 | 20 | 4.3 | 2.89 |
| 25 | 25 | 1 | 1.52 | 38.6 | 14 | 2030 | 56 | 8120 | 660 | 26 | 5.63 | 3.78 |
Product Show:
Our Main Product:
1. Hydraulic Hose
SAE 100R1AT/EN853 1SN
SAE 100R2AT/EN853 2SN
SAE 100R5
SAE 100R7/R8
SAE 100R9/R12
SAE 100R14/Teflon hose
EN856 4SP/4SH
2. Air/Water hose
3. Welding hose
Oxygen hose
Acetylene hose
Lpg hose/Propane hose
Twin hose
4. Oil/Water suction and discharge hose
5. Sandblast hose
6. Fire sleeve
Our Advantage:
1. With over 15 years of manufacturing of hydraulic hose and industrial hose.
2. We can offer OEM Services.
3. Free samples are available.
4. Long service life, used in many area.
5. ISO certificate/Quality certificate
6. Output 800,000 meters each month - fast delivery time
