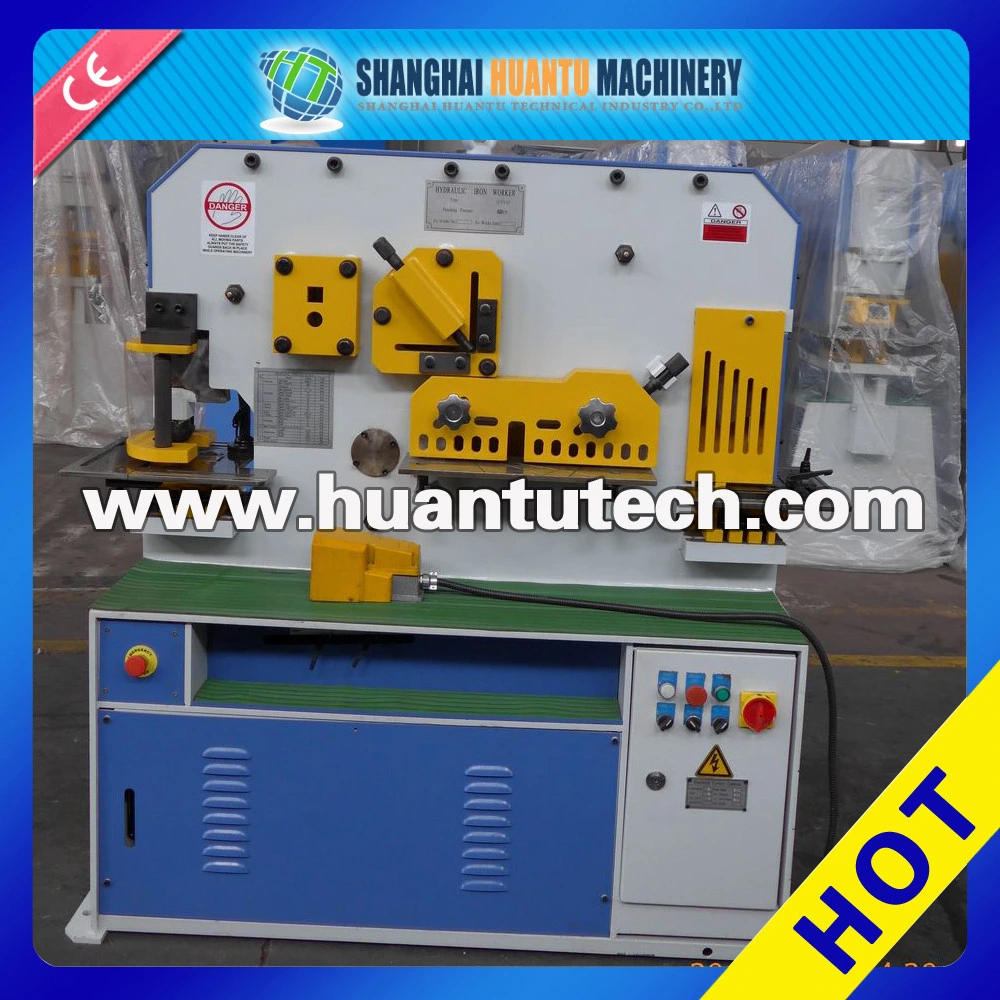

Iron punch, hydraulic punch, punch and shear machine
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4.2 independent hydraulic cylinders
5.2 shielded foot controls ironworker
6.2 Separate Die Openings for oversized punching
7.5 working stations for wide applications
8. Power inching on all 5 work stations cutting machine
9. Plate shear support/table and notching table
10. Adjustable stroke controls with indicators on both cylinders
11. Iron worker punching machine: Movable work light
12. Iron worker Overload protection on hydraulic system
13. Electric backgauge punching machine
14. Optional bending attachment cutting machine
15. Optional 5 sets punches and dies
Iron punch, hydraulic punch, punch and shear machine
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4.2 independent hydraulic cylinders
5.2 shielded foot controls ironworker
6.2 Separate Die Openings for oversized punching
7.5 working stations for wide applications
8. Power inching on all 5 work stations cutting machine
9. Plate shear support/table and notching table
10. Adjustable stroke controls with indicators on both cylinders
11. Iron worker punching machine: Movable work light
12. Iron worker Overload protection on hydraulic system
13. Electric backgauge punching machine
14. Optional bending attachment cutting machine
15. Optional 5 sets punches and dies
Iron punch, hydraulic punch, punch and shear machine
| Technical Data | ||||
| Model | Q35Y-16 ( IW-60 ) | Q35Y-20 ( IW-90) | Q35Y-25 (IW-110) | Q35Y-30 ( IW-140) |
| Working pressure(KN) | 600 | 900 | 1100 | 1400 |
| Max. cutting thickness(mm) | 16 | 20 | 25 | 26 |
| Max. cutting length(mm) | 400 | 480 | 600 | 600 |
| Tensile strength of sheet metal (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 |
| Shear angle(deg) | 7 | 8 | 8 | 8 |
| Stroke of ram(mm) | 80 | 80 | 80 | 80 |
| (stroke times)(min) | 8 | 8 | 8 | 8 |
| Depth of throat(mm) | 300 | 355 | 400 | 600 |
| Max .Capacities(mm) | 25×16 | 30×20 | 35×25 | 38×28 |
| Main motor(KW) | 4 | 5.5 | 7.5 | 11 |
| Length of machine tool(mm) | 1650 | 1950 | 2355 | 2680 |
| Width of machine tool(mm) | 800 | 900 | 980 | 1060 |
| Height of machine tool(mm) | 1780 | 1930 | 2100 | 2350 |
| Weight of machine tool(kg) | 1900 | 2600 | 4800 | 6800 |
| PUNCHING METRIC(mm) | ||||
| Max. Capacities | 25×16 | 30×20 | 35×25 | 38×26 |
| Max. Stroke Length | 80 | 80 | 80 | 80 |
| Throat Depth Standard | 305 | 355 | 400 | 600 |
| Working Height | 1030 | 1084 | 1142 | 1209 |
| SHEARING | ||||
| Flat Bar | 250×16 | 330×20 | 300×25 | 355×30 |
| Alternative | 400×8 | 480×10 | 600×16 | 600×20 |
| Blade Length | 410 | 485 | 620 | 610 |
| Working Height | 890 | 894 | 891 | 897 |
| ANGEL CUTTING | ||||
| At 90°cut | 125x125×12 | 140x140×12 | 160×160x14 | 180x180×16 |
| At 45°Mitre | 70×10 | 70×10 | 70×10 | 70×10 |
| Working Height | 1130 | 1139 | 1200 | 1220 |
| SECTION CUTTING | ||||
| Round / Square Bar | 45 | 50 | 60 | 65 |
| Channel / I bar | 130×65 | 160×88 | 200x100 | 280×122 |
| T bar | 90×12 | 90×12 | 90×12 | 90×12 |
| NOTCHING | ||||
| Material Thickness | 10 | 13 | 14 | 16 |
| Width | 57 | 57 | 57 | 57 |
| Depth: Vee -Rect. | 60-90 | 60-90 | 60-90 | 60-90 |
| Working Height | 890 | 883 | 886 | 898 |
