SAE100 R15 High Pressure Steel Wire Spiral Hydraulic Rubber Oil Hose
1.STRUCTURE
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +250°F; -40°C / +121°CMAX OPERATING TEMPERATURE:257°F; 125°C
INSERT:SHF TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS (DN 19~31); SIX HIGH TENSILE STEEL SPIRALS (DN 38~51)
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: SAE 100 R15 - ISO 3862-1 R15
2.KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Approved at 1.000.000 fl exing impulse cycles Over standard pressure resistance Outstanding ozone and weather resistance biological and mineral oils compatibility
Appearance: Wrap

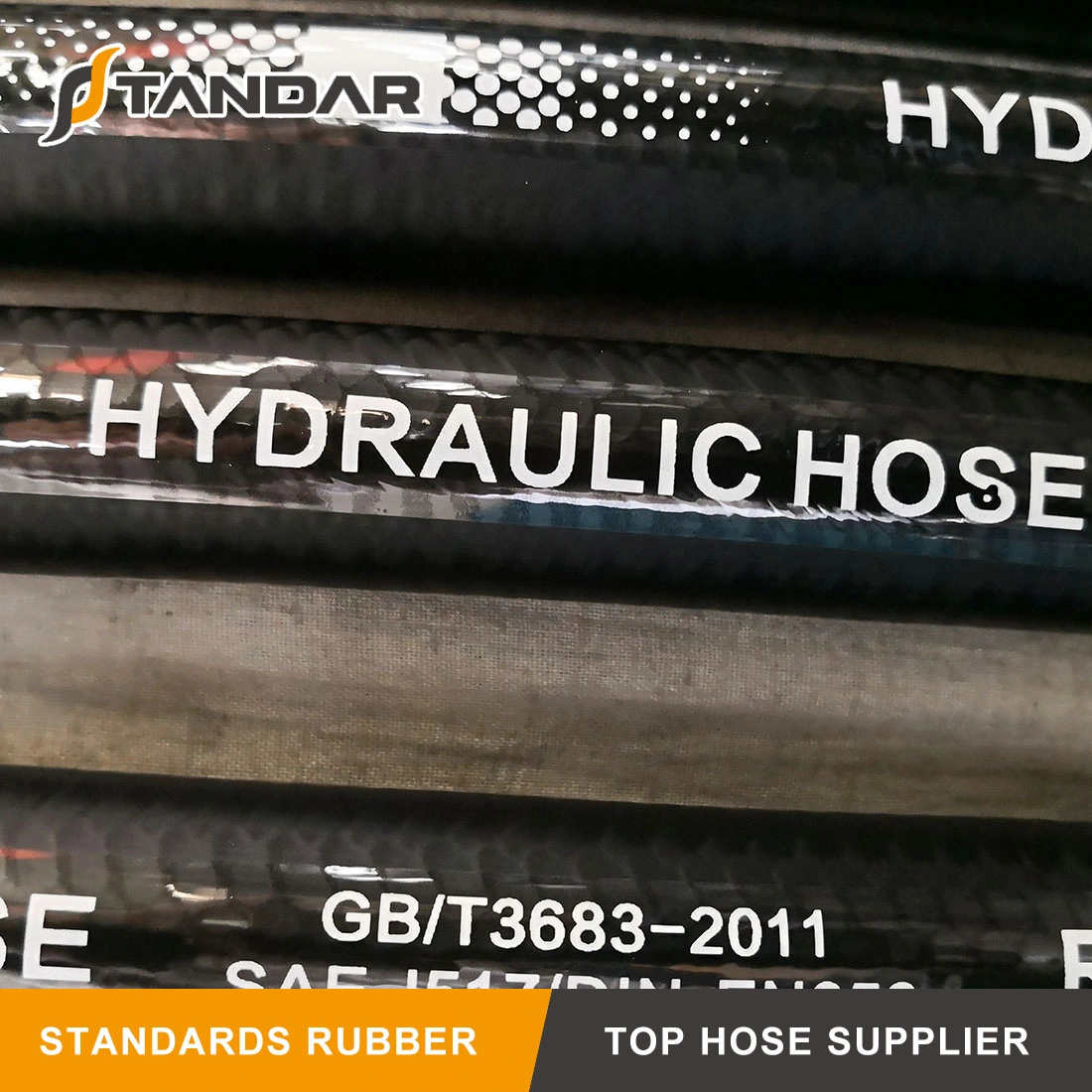

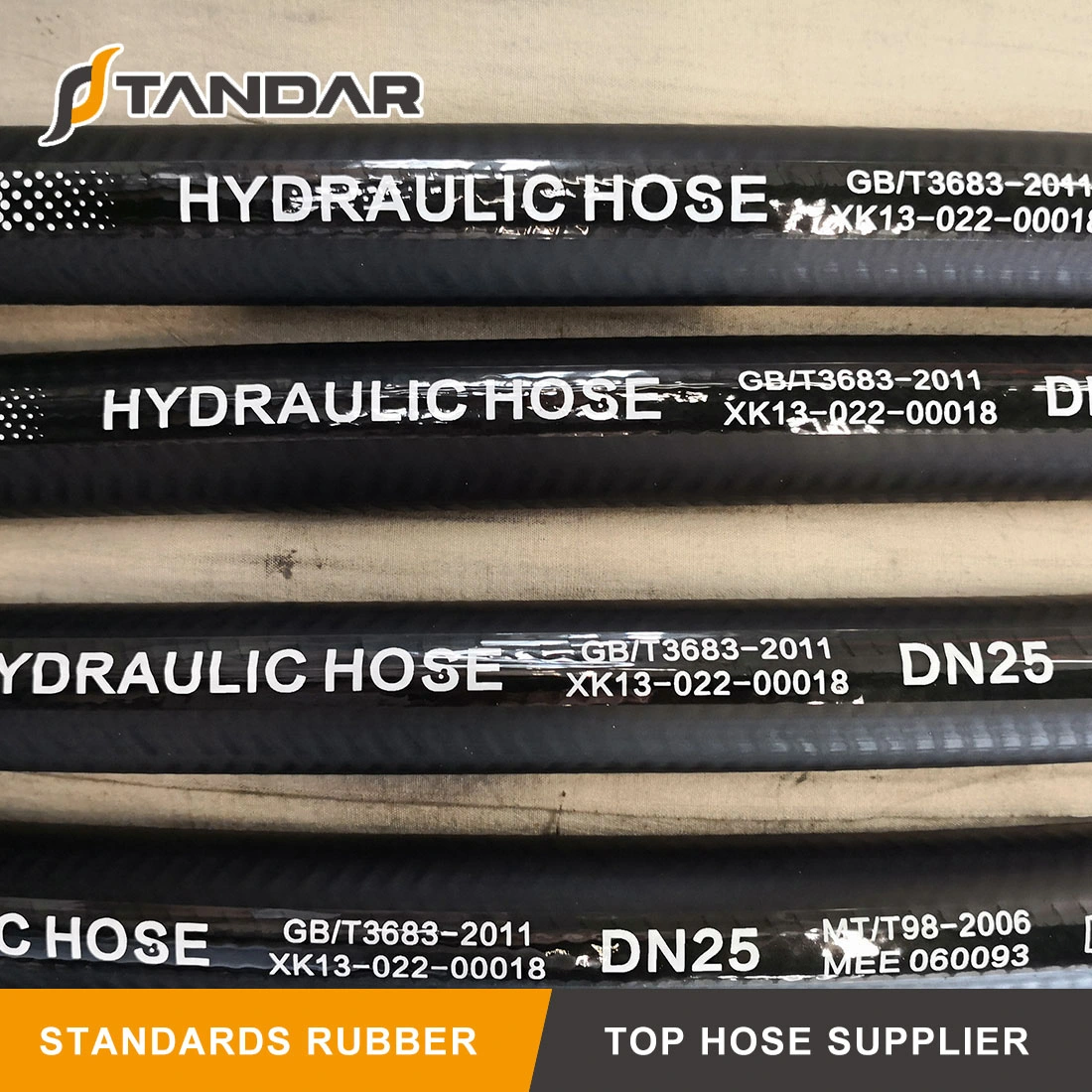

Branding: Printing and indelible branding with embossed technology
Colour: Black ,red ,blue,yellow,green,gray
3.APPLICATIONS & FLUIDS
Hydraulics:Heavy duty power lines, hydrostatic transmissions
Mineral oils, vegetable oils and synthetic ester based oils, (up to 212°F 100°C), glycols and polyglycols,mineral oils in aqueous emulsion, water
4.TEACHNICAL DATA
| TYPE | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| WS R15 19 | 19 | -12 | 3/4" | 29.0 | 32.0 | 420 | 6091 | 1680 | 24366 | 265 | 1.62 |
| WS R15 25 | 25 | -16 | 1" | 36.0 | 39.2 | 420 | 6091 | 1680 | 24366 | 330 | 2.18 |
| WS R15 31 | 31 | -20 | 1.1/4" | 46.0 | 49.0 | 420 | 6091 | 1680 | 24366 | 445 | 3.58 |
| WS R15 38 | 38 | -24 | 1.1/2" | 54.6 | 57.8 | 420 | 6091 | 1680 | 24366 | 530 | 4.50 |
| WS R15 51 | 51 | -32 | 2" | 68.4 | 72.0 | 420 | 6091 | 1680 | 24366 | 630 | 6.87 |
About Us
Shijiazhuang standards rubber products trading co., ltd is a highly professional and experienced manufacturer of rubber hoses in China.We have our own production base in Hengshui City, Hebei Province. We have specialized in this field over 20 years and always dedicated to the producing of rubber hoses in high quality, with a wide range of demands from multiple industries, including Engineering, Ocean, Mining, Chemicals plastics, Transportation, Oil, Metallurgy,etc.
OUR PRODUCTS INCLUDE:
1.Wire Braided Reinforced Hose
2.Wire Spiral Reinforced Hose
3.Textile Reinforced Hose
4.Other Industrial Hose
5.Hose Fitting etc.
Such as:
Hydraulic Hose,Hot Oil Hose,Low Temperature Hose,Washer Hose ,Fuel/Oil Hose,Gasoline Hose,Steam Hose,A/C Hose,Silicone Hose,Drilling Hose,Suction & Delivery Hose,Concrete Placement Hose,Hose Fitting & Hose Assembly,Etc.
Standards Rubber' Mission
Standards rubber aspires to make high-quality rubber and plastic hose easily accessible to the world as a whole
Standards Rubber' Vision
To be customers' top choice for unique and innovative solutions for their specific needs in rubber and plastic hose
Standards Rubber' Value
Every thing we do is customer-oriented.
Quality is the top priority of system planning.
Cooperation with suppliers helps us become faster and better
We are professional , friendly and businesslike
Standards Rubber' Service Overview
Standards rubber provides a full range of services to companies that need a reliable supply of custom rubber and plastic hose from China.
Our services accommodate all your needs in throughout designing sampling, testing, producing, quality controlling, certifying packaging warehousing, consolidating delivering and after-sales handing
We sincerely welcome partners all over the world to visit us for win-win cooperation!
