Abrasion Resistant DIN EN 856 Heavy Duty Hydraulic Hose R15
Standard: DIN EN 856 SAE 100R15

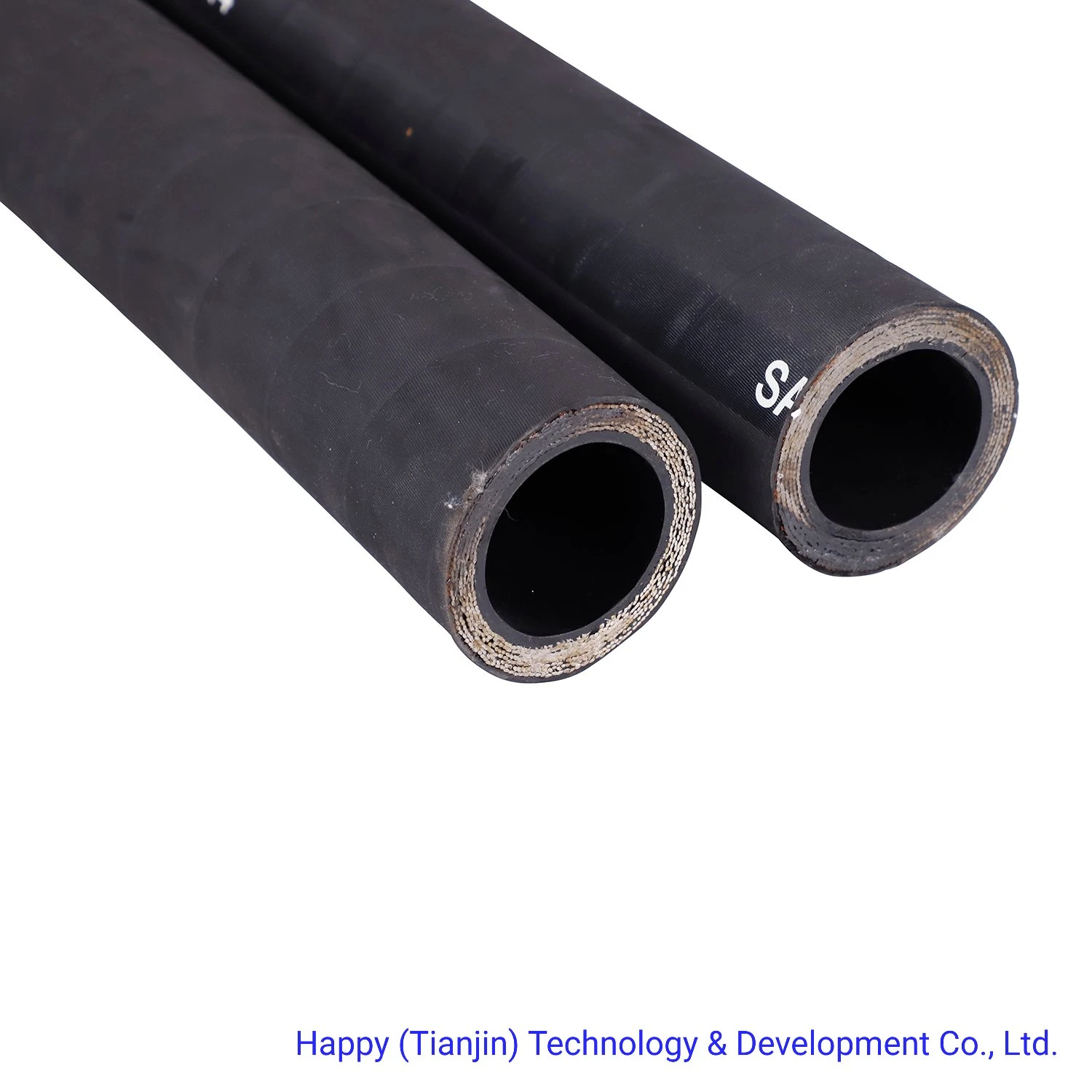

Pictures of R15 Hydraulic Hose
Standard: DIN EN 856 SAE 100R15
Structure of hydraulic hose R15:
Tube: Black, oil resistant, synthetic rubber (Nitrile - Type C).
Reinforcement: Four (3/8" to 1" ) alternating layers of spiraled, high tensile steel.
Six (1-1/4" to 2") alternating layers of spiraled, high tensile steel.
Cover: black,oil,weather and VERY HIGH ABRASION resistant synthetic rubber.
Temperature Range: -40°F to +250°F (-40°C to +121°C).
Recommended For: Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. This hose R15 is designed to meet all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12) and EN 856 4SH (- 12, -16, and -20, -24).
Specifications of R15 High Pressure Rubber Hose
| SIZE | ID | O.D | W.P | B.P | min B.R | W.T | |||
| Dash | Inch | inch | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| -6 | 3/8 | 0.80 | 42 | 6000 | 168 | 24000 | 5.91 | 150 | 0.80 |
| -8 | 1/2 | 0.95 | 42 | 6000 | 168 | 24000 | 7.87 | 200 | 0.95 |
| -10 | 5/8 | 1.09 | 42 | 6000 | 168 | 24000 | 8.0 | 230 | 1.30 |
| -12 | 3/4 | 1.24 | 42 | 6000 | 168 | 24000 | 10.40 | 265 | 1.85 |
| -16 | 1 | 1.53 | 42 | 6000 | 168 | 24000 | 13.00 | 330 | 2.90 |
| -20 | 1 1/4 | 1.97 | 42 | 6000 | 168 | 24000 | 17.52 | 445 | 4.20 |
| -24 | 1 1/2 | 2.26 | 42 | 6000 | 168 | 24000 | 20.87 | 530 | 5.60 |
