Flexible Hydraulic Rubber Hose SAE 100 R3
Executive Standard:SAE J517 TYPE 100 R3 STANDARD
Construction:
Executive Standard:SAE J517 TYPE 100 R3 STANDARD
Construction:
- Inner Tube:Oil Resistant Synthetic Rubber.
- Reinforcement:Two High Tensile Fiber Braided.
- Cover: Abrasion and weather resistant synthetic rubber.
- Temperature range:-40° C to 120° C.
Features:
1) Temperature range: -40 ~ 100°C (-40 ~ 212°F).
2) I.D. range: 1/4 - 1".
3) Meets or exceeds the requirement of SAE J517 100R3.
4) Flame resistance .
5) Resistant to oil, heat and abrasion.
6) Application: medium pressure hydraulic line, fuel oil, antifreeze solutions,
water and air.
Specification:
DN | Hose I.D | Hose O.D. | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| 5 | 3/16 | 4.8 | 12.7 | 10.5 | 1520 | 42.0 | 6500 | 75 | 0.16 |
| 6 | 1/4 | 6.4 | 14.3 | 8.7 | 1350 | 34.8 | 5300 | 75 | 0.19 |
| 8 | 5/16 | 7.9 | 17.5 | 8.4 | 1300 | 33.6 | 5200 | 100 | 0.26 |
| 10 | 3/8 | 9.5 | 19 | 7.8 | 1200 | 31.2 | 4840 | 100 | 0.28 |
| 13 | 1/2 | 12.7 | 23.8 | 7.0 | 1080 | 28.0 | 4340 | 125 | 0.4 |
| 16 | 5/8 | 15.9 | 27 | 6.1 | 945 | 24.4 | 3780 | 140 | 0.55 |
| 19 | 3/4 | 19.0 | 31.8 | 5.2 | 800 | 20.8 | 3220 | 150 | 0.69 |
| 25 | 1 | 25.4 | 38 | 3.9 | 600 | 15.6 | 2420 | 205 | 0.82 |
| 32 | 1 1/4 | 31.8 | 44.4 | 2.6 | 40 | 10.4 | 1610 | 250 | 1.00 |

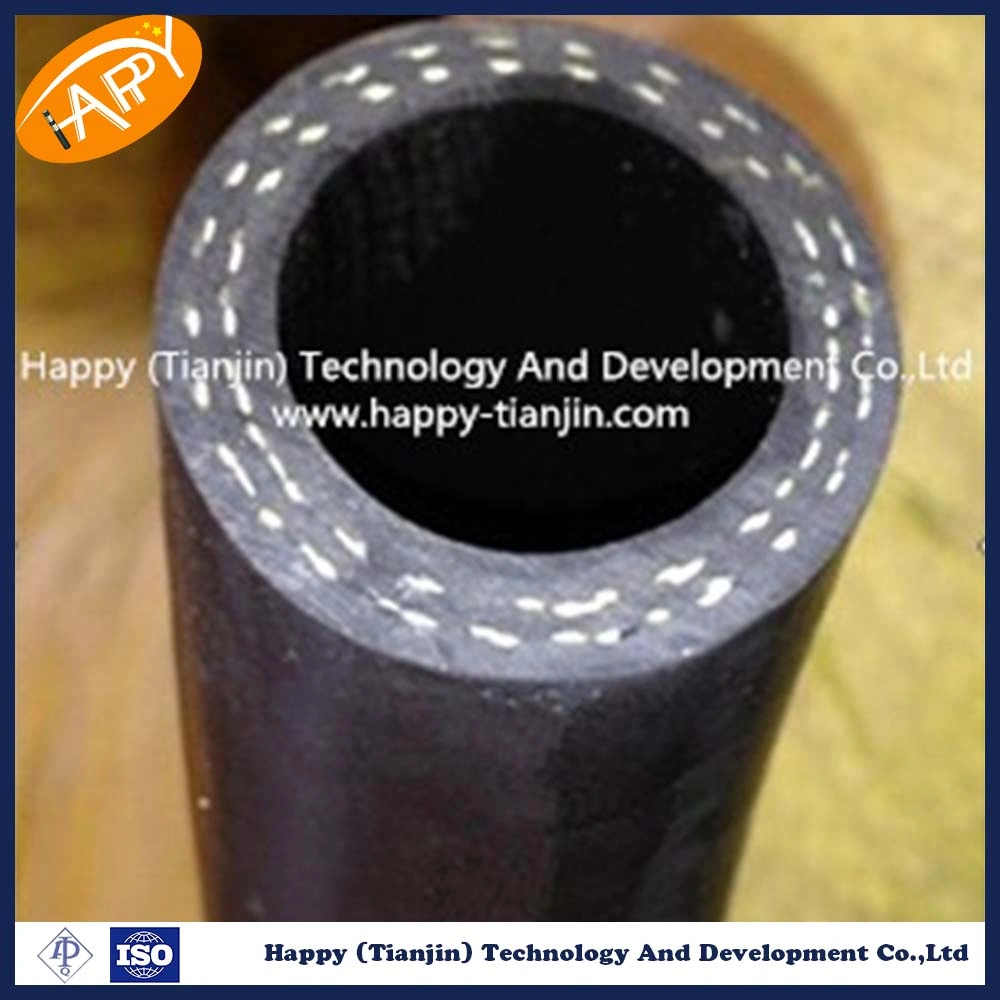

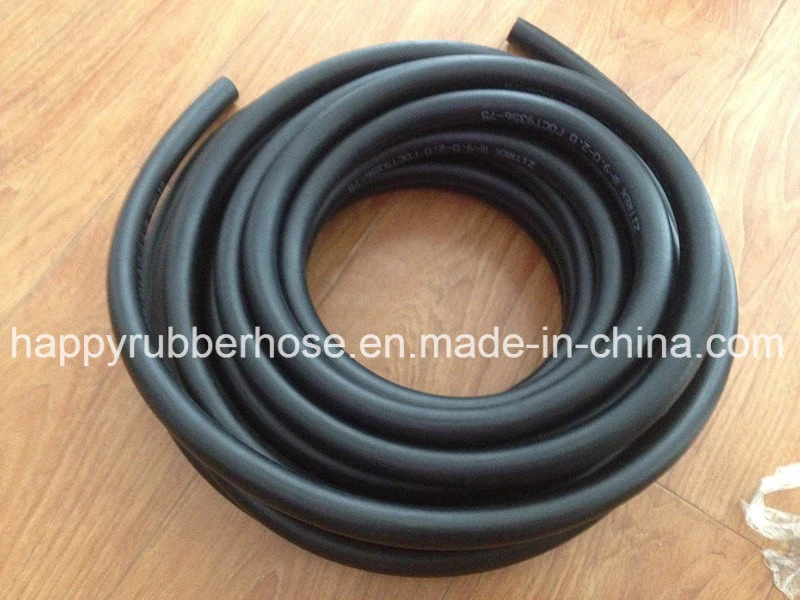

Flowing are the pictures of Flexible Hydraulic Rubber Hose SAE 100 R3:
The pictures of the package:
The pictures of our factory:
Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ's
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
