En856 4sp/ 4sh Abrasion Resistant Hydraulic Hose

EN856 4SP/4SH abrasion hydraulic hoseWelcome to Hebei Hengyu Rubber Product Group! We supply full range of Hydraulic hose and industrial hose EN856 4SP/4SH abrasion hydraulic hosePlease find our contact info at the very bottom of the page and send us your specific requirment, we shall get back to you immediately.

Featured Products

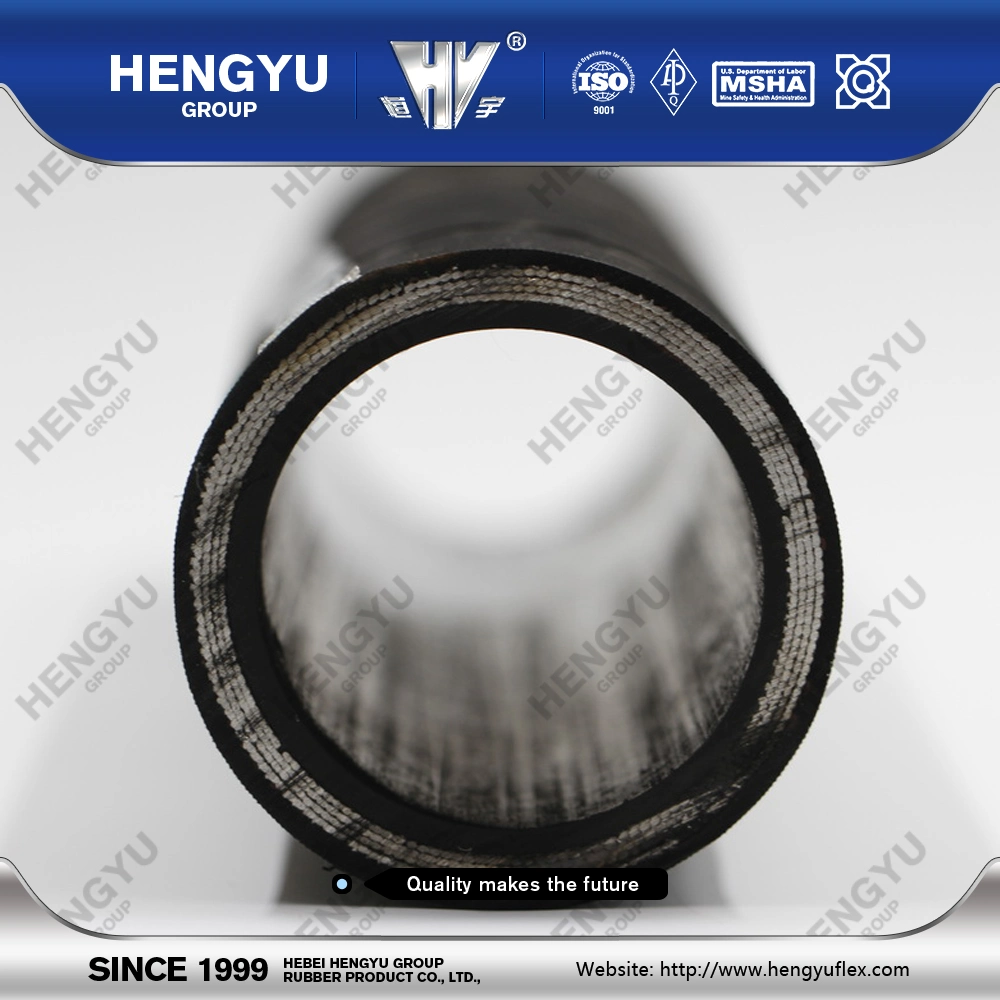

EN856 4SP/4SH abrasion hydraulic hose

Welcome to Hebei Hengyu Rubber Product Group! We supply full range of Hydraulic hose and industrial hose

EN856 4SP/4SH abrasion hydraulic hose

Please find our contact info at the very bottom of the page and send us your specific requirment, we shall get back to you immediately.




En856 4sp/4sh Abrasion Hydraulic Hose

4SH
I.DR.O.D.O.D MAX W.P.MIN B.P.MIN B.R.WEIGHT
mminchMinMaxMinMaxMinMaxbarpsibarpsimmkg/m
mmmmmmmmmmmm
193/4"18.6 19.8 27.6 29.2 31.4 33.0 42060901680243602801.55
251"25.0 26.4 34.4 36.0 37.5 39.9 38055101520220403402.00
31.51.1/4"31.4 33.0 40.9 42.9 43.9 47.1 32547141300188554602.46
381.1/2"37.7 39.3 47.8 49.8 51.9 55.1 29042051160168205603.36
512"50.4 52.0 62.2 64.2 66.5 69.7 25036501000156007004.98


MAIN APPLICATION: Very high-pressure applications used for petroleum based hydraulic fluids.
TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals
COVER: Environment resistant synthetic rubber,MSHA approval (flame resistance)
APPLICABLE SPECS.: EN 856 4SH - ISO 3862-1 4SH - MT/T98 4SH

4SP
I.DR.O.D.O.D MAX W.P.MIN B.P.MIN B.R.WEIGHT
mminchMinMaxMinMaxMinMaxbarpsibarpsimmkg/m
mmmmmmmmmmmm
103/8"9.3 10.1 16.9 18.1 20.6 22.2 44564541780258161800.78
121/2"12.3 13.5 19.4 21.0 23.8 25.4 41560191660240762300.89
165/8"15.5 16.7 23.0 24.6 27.4 29.0 35050761400203052501.11
193/4"18.6 19.8 27.4 29.0 31.4 33.0 35050761400203053001.59
251"25.0 26.4 34.5 36.1 38.5 40.9 28040611120162443402.02
311.1/4"31.4 33.0 45.0 47.0 49.2 52.4 2103045840121834603.32
381.1/2"37.7 39.3 51.4 53.4 55.6 58.8 1852683740107325603.70
512"50.4 52.0 64.3 66.3 68.2 71.4 165239366095726605.47


MAIN APPLICATION: Very high-pressure applications used for petroleum based hydraulic fluids.
TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals
COVER: Environment resistant synthetic rubber,MSHA approval(flame resistance)
APPLICABLE SPECS.: EN 856 4SP - ISO 3862-1 4SP - MT/T98 4SP
Packaging & Shipping

Our hose products are usually packaged with plastic woven sheet/film wrapped .We also can supply special package according customers' requests.We usually pick up20/40ft container from seaport to our warehouse loadinghoses by ourself workers,it can aviod damage when loading container in seaport.

En856 4sp/4sh Abrasion Hydraulic Hose



Company Information

Hebei Hengyu Rubber Product Group Co., Ltd. founded in 1999, we implement a strategy of development for diversification and value driven, positioning in the development of every corner of the world. We uphold the idea of continuous improvement, introduced the international advanced equipment to improve the production quality: the knitting machine of Germany MAYER , wire wrapping machine of South Korea SUNGIL, burst-testing machine of MAXIMATOR and impulse-testing machine of BIMAL, and other modern production and inspection equipment. We can produce almost all types of rubber hoses with the standards DIN EN and SAE J517: Wire braid rubber hose, Wire spiral rubber hose, Water/Oil suction hose, Jet washing hose, Rotary/Drilling hose, Sand-blasting rubber hose, Flexible hose assembly,etc. To provide the best all season services for our customers. The strict quality control: we have passed the international quality management system ISO9001:2008, also we have the certification of American Petroleum Association API 7K & Q1

 En856 4sp/4sh Abrasion Hydraulic Hose

Our Advantages

1, Knitting machine of Germany MAYER
2, Wire wrapping machine of South Korea SUNGIL
3, Burst-testing machine of MAXIMATOR
4, Impulse-testing machine of BIMAL
5, Unique product design with excellent production technology
6, Strict system of quality assurance

 En856 4sp/4sh Abrasion Hydraulic Hose

Our Certifications

1, ISO9001:2008
2, API Q1
3, API 7K
4, ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE

 En856 4sp/4sh Abrasion Hydraulic Hose

Our Services

1: Your inquiry related to our products or prices will be replied in 24 hours.
2: Best quality and competitive price.
3: We can offer OEM Services
4: We can provide FREE SAMPPLE for our customers
5: We can crimp hose assembly for our customers.
6: We welcome clients to visit our factory leading to better understanding of our production.

En856 4sp/4sh Abrasion Hydraulic Hose

FAQ

1) Are you a factory or trading company ?

A: We are a professional manufacturer with over 18 years producing experience and 10 years exporting experience.

2) Where is your factory located and how can I visit your factory?

A: Our factory located in JingXian City, Hebei Province. 1 Hour far from Tianjin city, and 2 hours far from Beijing city by High-speed train.

3) How can I place an order?

A: You can contact us by email about your order details, or click 'Start Order' online. It is guaranteed by Alibaba platform that your payment online and our delivery on-time.

4) What is the shipping way and terms of payment?

1. for samples and parcels, door to door by DHL, FedEx, UPS, TNT ... etc;

2. for LCL, by air or by sea, or customer forwarder/agent also acceptable;

3. Wester union, T/T 30% down payment and 70% before shipping.

5) What is the production period normally?

1. Samples: within 7 working days.

2. Normal order: 20 to 45 days.



Thanks for your interesting in our products of hydraulic rubber hose and fittings

If you have any question, please feel free to contact us!
