Industry high quality hydraulic hose 4SH EN856
The Best Quality En856 4sh High-Pressure Steel Braid Oil Hose
Specifications
China manufacture High-Pressure Hydraulic Hose 4SP
1. I. D 1/4''~2''
2. W. P6550psi~2395psi
3. NBR & CR
4. Abrasion-resistant
Features of Hydraulic Hose 4SP
Application: Very high-pressure applications used for petroleum-based hydraulic fluids
Inner tube: Neoprene
Reinforcement: Four alternating layers of spiraled high-tensile steel wire
Cover compound: Neoprene
Temperature range: -40° F 212° F; -40oC~121oC
Remarks:
1. Sample is available
2. OEM is welcome
3. Just feel free to contact us if any questions
| Part No. | Hose Size ID | Hose OD | Work Pressure | Bend Radius | Burst Pressure | Weight | |||||
| in | mm | in | mm | psi | mpa | in | mm | psi | mpa | kg/m | |
| HQ-4SH-12 | 3/4 | 19 | 1.268 | 32.2 | 6000 | 41.4 | 11 | 279 | 24000 | 165.5 | 1.53 |
| HQ-4SH-16 | 1 | 19 | 1.524 | 38.7 | 5500 | 37.9 | 13.5 | 343 | 22000 | 151.7 | 2.06 |
| HQ-4SH-20 | 1 1/4 | 25.4 | 1.791 | 45.5 | 4700 | 32.4 | 18.5 | 470 | 18800 | 129.6 | 2.46 |
| HQ-4SH-24 | 1 1/2 | 31.8 | 2.106 | 53.5 | 4200 | 29 | 22.5 | 572 | 16800 | 115.8 | 3.35 |
| HQ-4SH-32 | 2 | 50.8 | 2.681 | 68.1 | 3650 | 25.2 | 28 | 711 | 14600 | 100.7 | 4.55 |

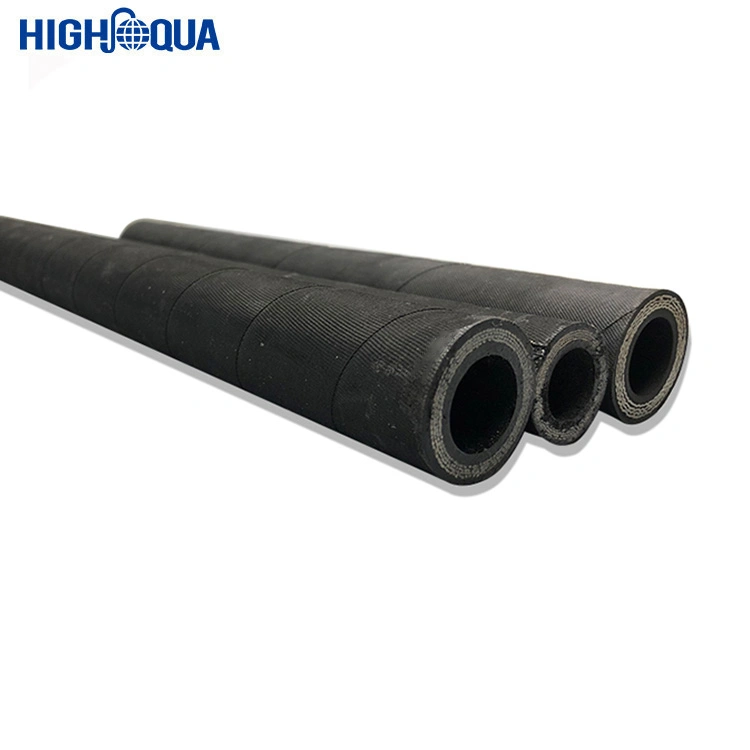

Pictures of Product:
Exhibition show
